80W UHF/VHF RF Power Amplifier Board
44.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake
Enhance your radio communication with this 80W UHF/VHF RF Power Amplifier Board, designed to operate within 130-170 MHz and 400-470 MHz frequency ranges. Crafted from a 94mm x 50mm x 1.6mm blue matte PCB, it features two large blue-integrated circuit modules, a gold-colored coaxial connector, and multiple surface-mount resistors and capacitors for reliable performance. This amplifier boosts transmission power from 1-5W input to up to 80W output (module-dependent), requiring a DC power supply of 10-13.8V and offering an insertion loss around -1.5 dB. Compatible with Mitsubishi RA30H4047M, RA60H4047M, and Toshiba modules, it’s ideal for upgrading handheld and mobile radios.
Only 2 left in stock
This this 80W UHF / VHF RF Power Amplifier Board

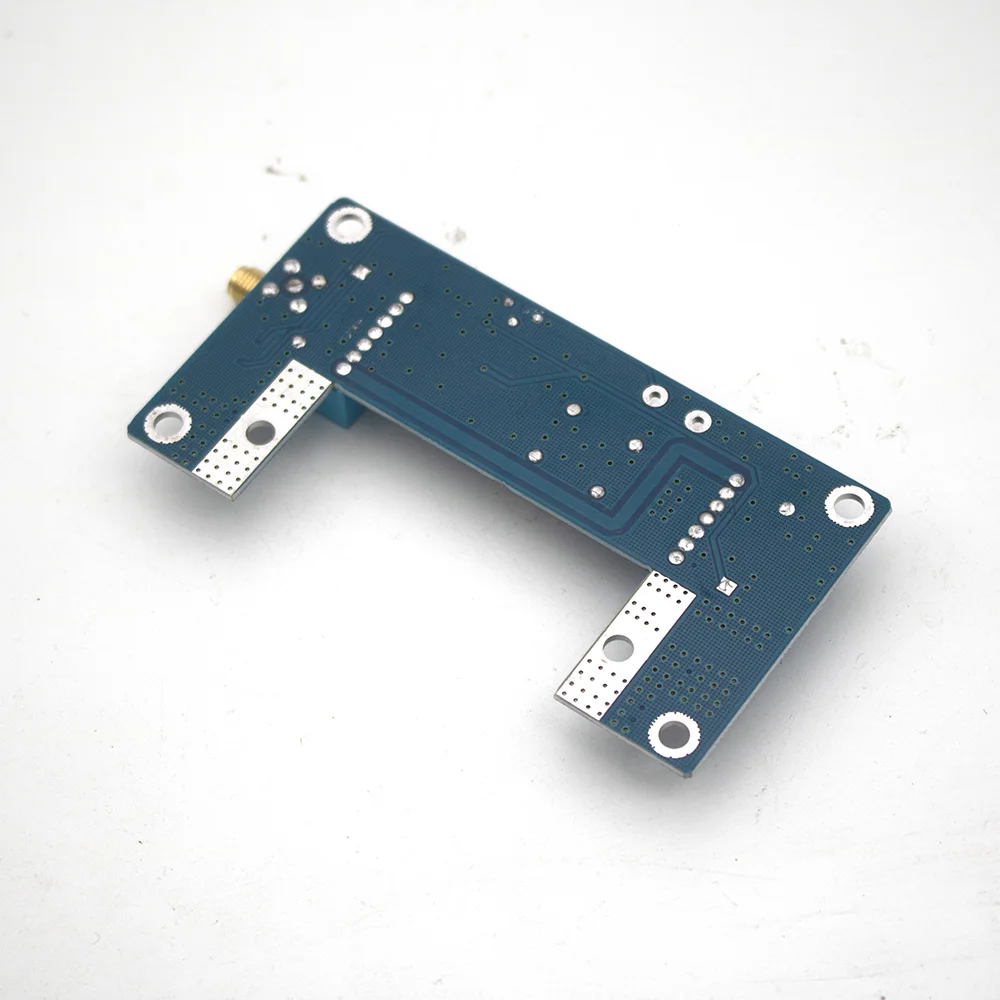

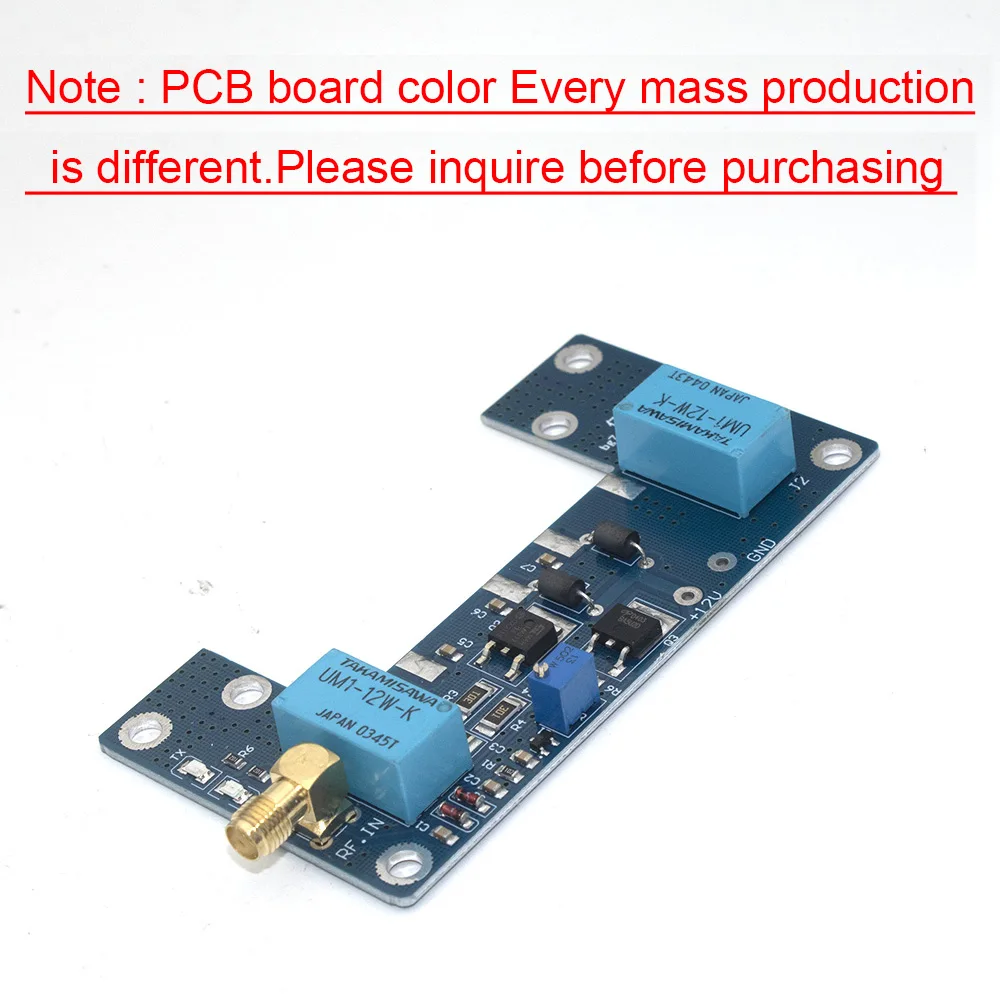

Experience enhanced radio communication with this high-performance 80W UHF/VHF RF Power Amplifier Board, designed for reliable operation across the 130-170 MHz and 400-470 MHz frequency ranges. Constructed with a vibrant blue matte finish, this compact PCB measures 94mm by 50mm with a thickness of only 1.6mm, making it ideal for integrated installation in various transceiver setups. The board features two large blue integrated circuit modules labeled TAMURA/SAWKA UM-12W-K, providing smooth signal amplification. The gold-colored coaxial connector ensures secure RF input/output, while multiple surface-mount resistors and capacitors guarantee precise performance. The metallic contact points along the edges facilitate versatile connections, making this board a crucial component for boosting handheld or vehicle-based radio transmissions.
Keys features of the this 80W UHF / VHF RF Power Amplifier Board
- Operates efficiently at frequencies of 130-170 MHz and 400-470 MHz, supporting various communication applications for enhanced signal transmission.
- Provides adjustable output power from 10W up to 80W, depending on the specific module installed, ensuring flexible power management.
- Designed to operate with a DC voltage supply of 10-13.8V, suitable for most portable and vehicular radio systems, with low insertion loss of approximately -1.5 dB.
- Features two prominent blue integrated circuit modules (UM-12W-K), clearly labeled with manufacturer details, contributing to both aesthetic appeal and technical precision.
- Compact PCB dimensions of 94mm length, 50mm width, and 1.6mm thickness, with mounting holes at each corner for secure installation in various enclosures.
- Compatibility includes Mitsubishi RA30H4047M, RA60H4047M, and Toshiba modules, making it suitable for enhancing the transmission power of diverse transceiver models.

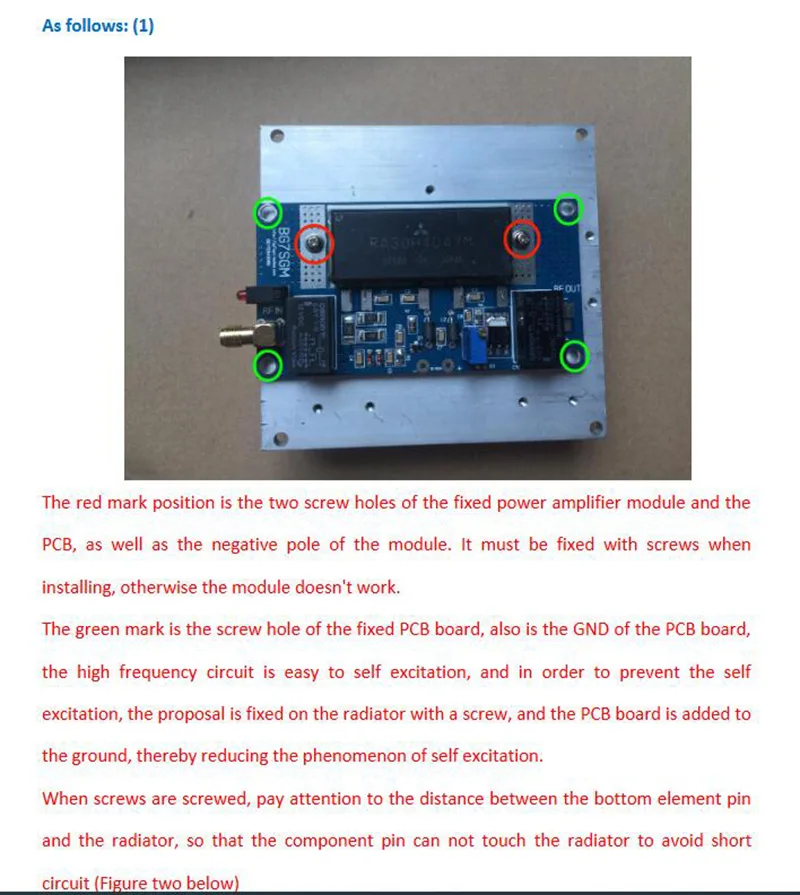

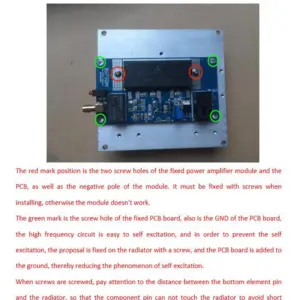

- Requires a radiator larger than the PCB, with a minimum thickness of 25mm, to ensure optimal heat dissipation during operation.
This this 80W UHF / VHF RF Power Amplifier Board—Upgrade Your Radio Today
Imagine your radio transmitting farther and clearer, thanks to this high-quality power amplifier. Whether for professional or hobbyist use, installing this board can transform your communication experience, making every call more reliable and confident. You’ll enjoy the seamless integration and performance, knowing you’ve chosen a durable, precise component for your setup. Don’t wait—enhance your radio system now and experience the difference this amplifier board makes in your connectivity.
Your radio setup deserves the best in amplification technology. With this this 80W RF Power Amplifier Board, you gain confidence in your communication equipment’s range and clarity. Upgrade today and stay connected more effectively than ever before!
