5-21GHz RF Mixer for High-Frequency Conversion
144.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake

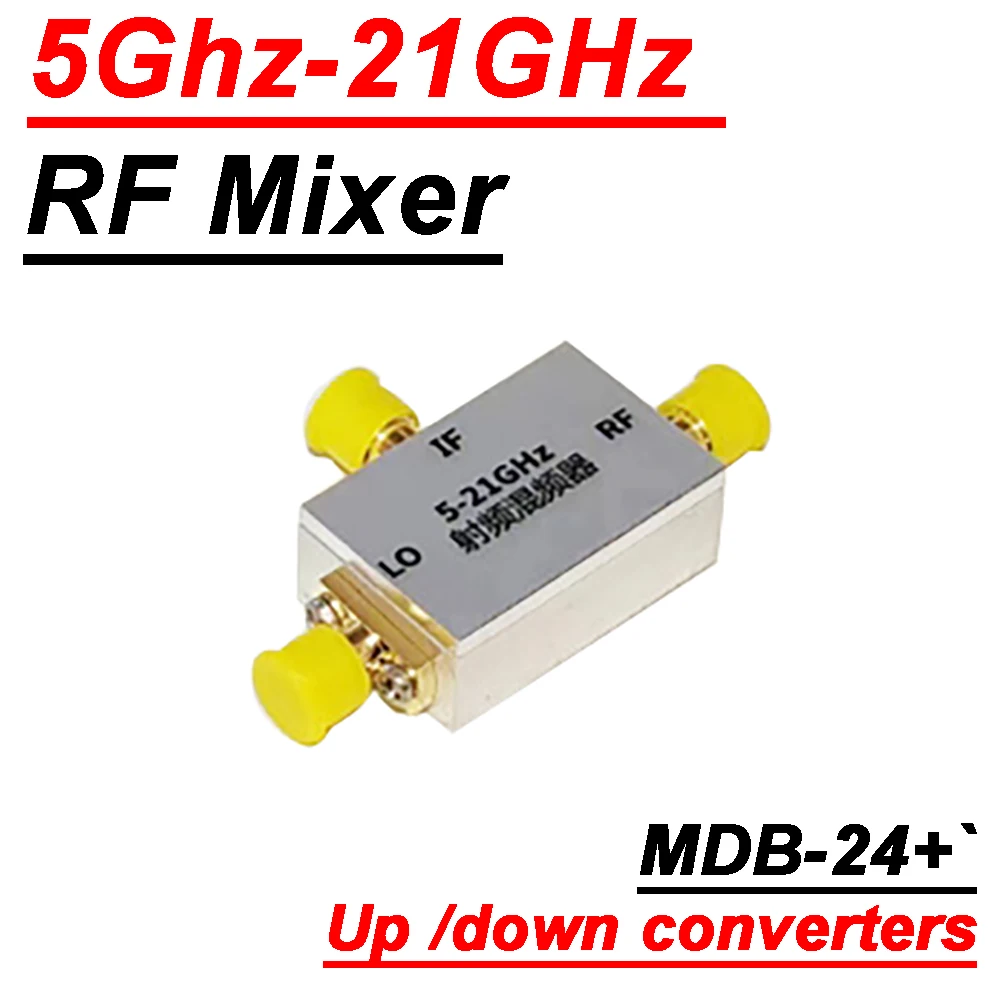

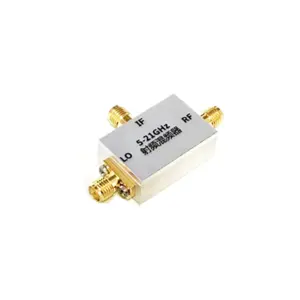

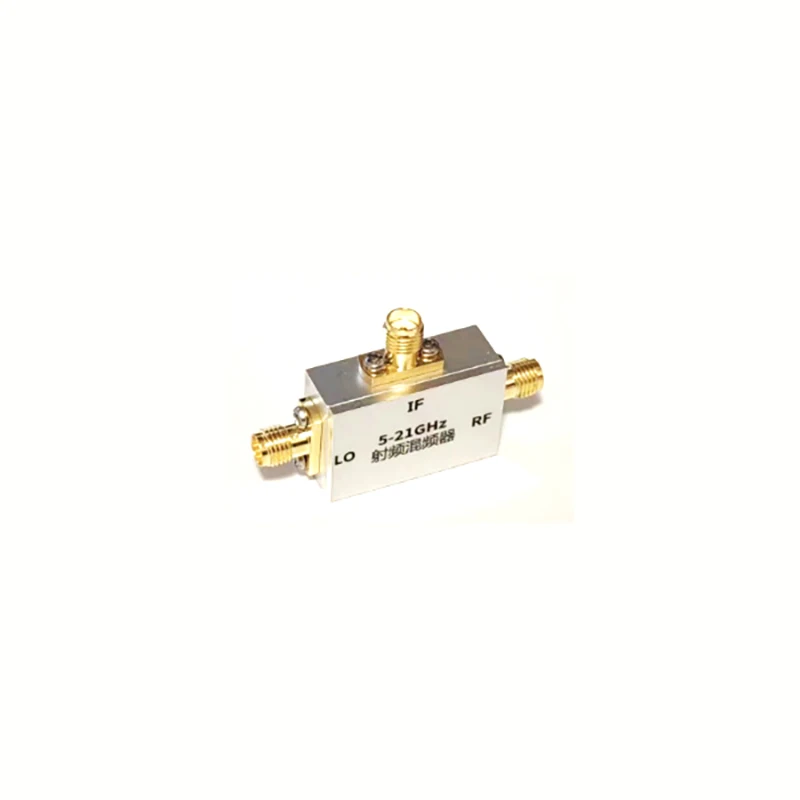

This RF mixer module features a sleek, compact design with a silver-colored CNC-structured shell and four gold-plated SMA connectors for secure high-frequency RF connections. Operating between 5GHz and 21GHz, it supports up and down conversion for C-band, X-band, and Ku-band systems, with an intermediate frequency range of DC to 5000MHz. The device offers a low insertion loss of 8-12dB, isolation of 29dB (typical), and an LO drive level of +15dBm, making it ideal for advanced RF transmitter and receiver applications. Measuring 29 x 19 x 11mm (excluding connectors), its rugged, professional design ensures reliability in high-frequency communication systems.
In stock
This this RF Mixer for high-frequency conversion
Experience precise and reliable signal transformation with this high-performance RF mixer, designed for frequencies from 5GHz to 21GHz. Its sleek, silver-colored CNC-structured shell provides excellent electromagnetic shielding, ensuring stable operation in demanding environments. Surrounding the compact, 29mm by 19mm by 11mm module are four gold-plated SMA connectors, offering secure, corrosion-resistant connections for input and output signals. The high-frequency circuit board delivers low insertion loss, optimizing signal quality during up and down conversions. Its professional, rugged design makes it ideal for advanced RF transceiver systems in communications like C-band, X-band, or Ku-band. Whether you’re upgrading your system or building a new project, this mixer ensures durable, high-frequency performance with sophisticated technical standards.
Keys features of this RF Mixer
- This RF mixer operates from 5GHz to 21GHz, supporting a broad range of high-frequency applications, including C-band, X-band, and Ku-band transceiver systems for diverse communication needs.
- Designed with a CNC-structured shell, it provides excellent electromagnetic shielding, reducing interference and ensuring stable signal processing in complex environments.
- The module uses SMA-K connectors, offering secure, threaded, gold-plated connections resistant to corrosion and capable of handling maximum input powers of +21dBm.
- With a low insertion loss circuit board, it achieves a frequency conversion loss of 8-12dB and a typical LO-RF isolation of 29dB, ensuring minimal signal degradation during operation.
- Operating frequencies include RF and LO from 5GHz to 21GHz, and IF coverage from DC to 5000MHz, ideal for various up and down conversion applications in modern RF systems.

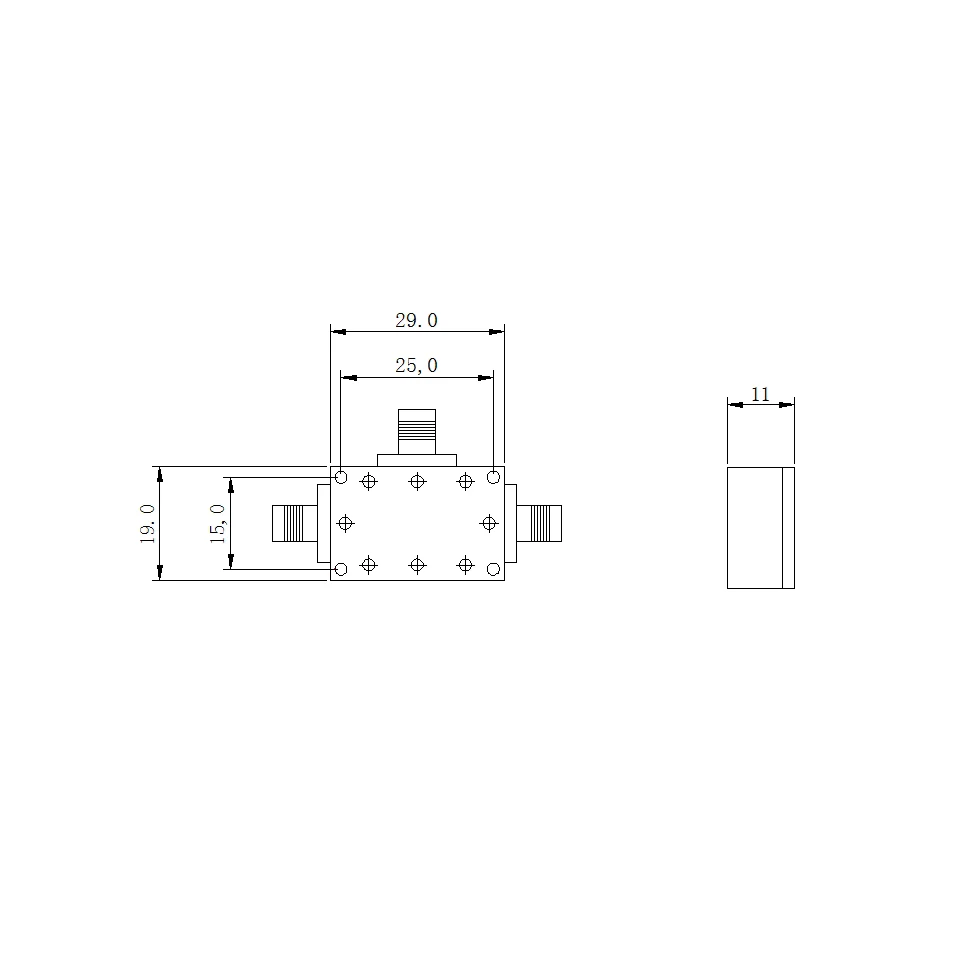

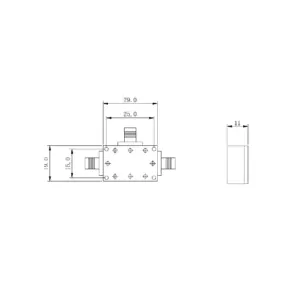

- Key technical specifications encompass: size of 29 x 19 x 11mm (excluding connectors), LO drive level of +15dBm, and maximum input/output power of +21dBm, supporting efficient high-frequency operations.
This this RF mixer is ready to enhance your RF systems, order now!
Take your RF setup to the next level with this high-quality, reliable RF mixer. Its durable design and advanced features are perfect for professional applications requiring precise signal conversion at frequencies up to 21GHz. Invest in this essential component today and experience improved performance and stability in your transceiver projects. Whether upgrading existing systems or designing new solutions, this mixer offers the technical excellence and durability you demand.
