4S Li-ion Protection Circuit Board 14.8V 90W
Price range: 23.99 € through 27.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake

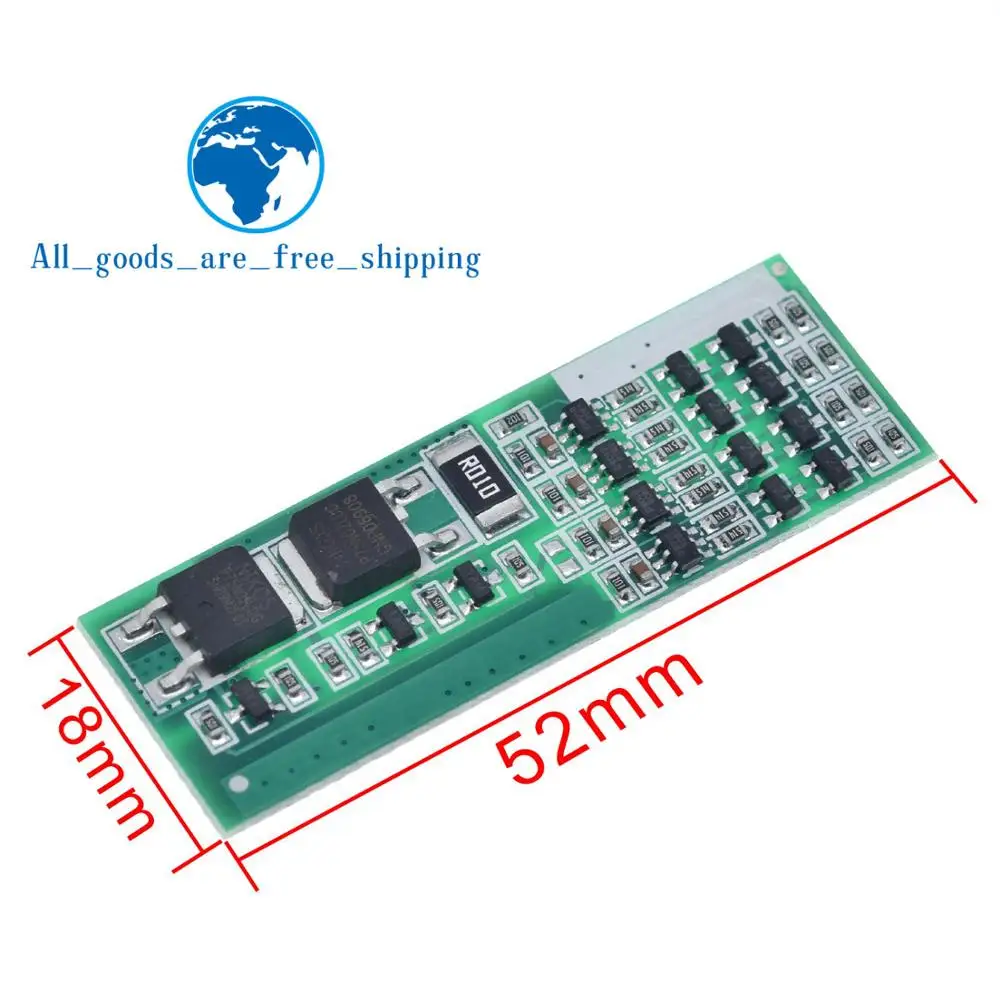

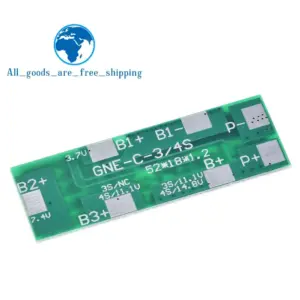

This 4S lithium-ion battery protection circuit board measures 18mm x 53mm x 3mm and is designed for 14.8V (4 serial 3.7V) cell configurations. Supporting an operating current from 0.5A to 8A and a load power range of DC 12-16V up to 90W, it features overcharging protection at approximately 4.20V ±0.025V per cell, overdischarging protection at approximately 2.50V ±0.1V per cell, and short circuit protection. The board’s minimalistic, organized green design includes precisely labeled soldering points (B-, B1+, B2+, B3+, B+), and flexible output terminals (P-, P+), making it ideal for electronic modules, switches, and sensors using 3.7V Li-ion batteries in a 4-series setup.
This Essential 4S Li-ion Protection Circuit Board
Imagine confidently building your 14.8V (4 x 3.7V) Li-ion battery pack with this high-quality protection board. Its vibrant green PCB design features clear white labels and meticulously organized connection points, ensuring a straightforward soldering process. The compact dimensions of 18mm by 53mm by 3mm make it ideal for space-conscious projects. With support for operating currents from 0.5A to 8A and maximum load power of 90W at 12-16V, this protection board offers reliable overcharging, overdischarging, and short circuit protection. Its robust design ensures safety and performance for your battery packs, providing peace of mind during long-term usage in various electronic applications.
Keys features of this 4S Li-ion Protection Circuit Board
- Designed for 4-series Li-ion battery packs, supporting 14.8V at 8A with a maximum load of 90W, ensuring versatile and safe operation for powerful electronics projects.
- Features precise overcharging protection at 4.20V ±0.025V per cell and overdischarging protection at 2.50V ±0.1V per cell, safeguarding your batteries from damage during use.
- Includes short circuit protection and operates efficiently within a temperature range of -40°C to +85°C, making it suitable for diverse environments and demanding applications.

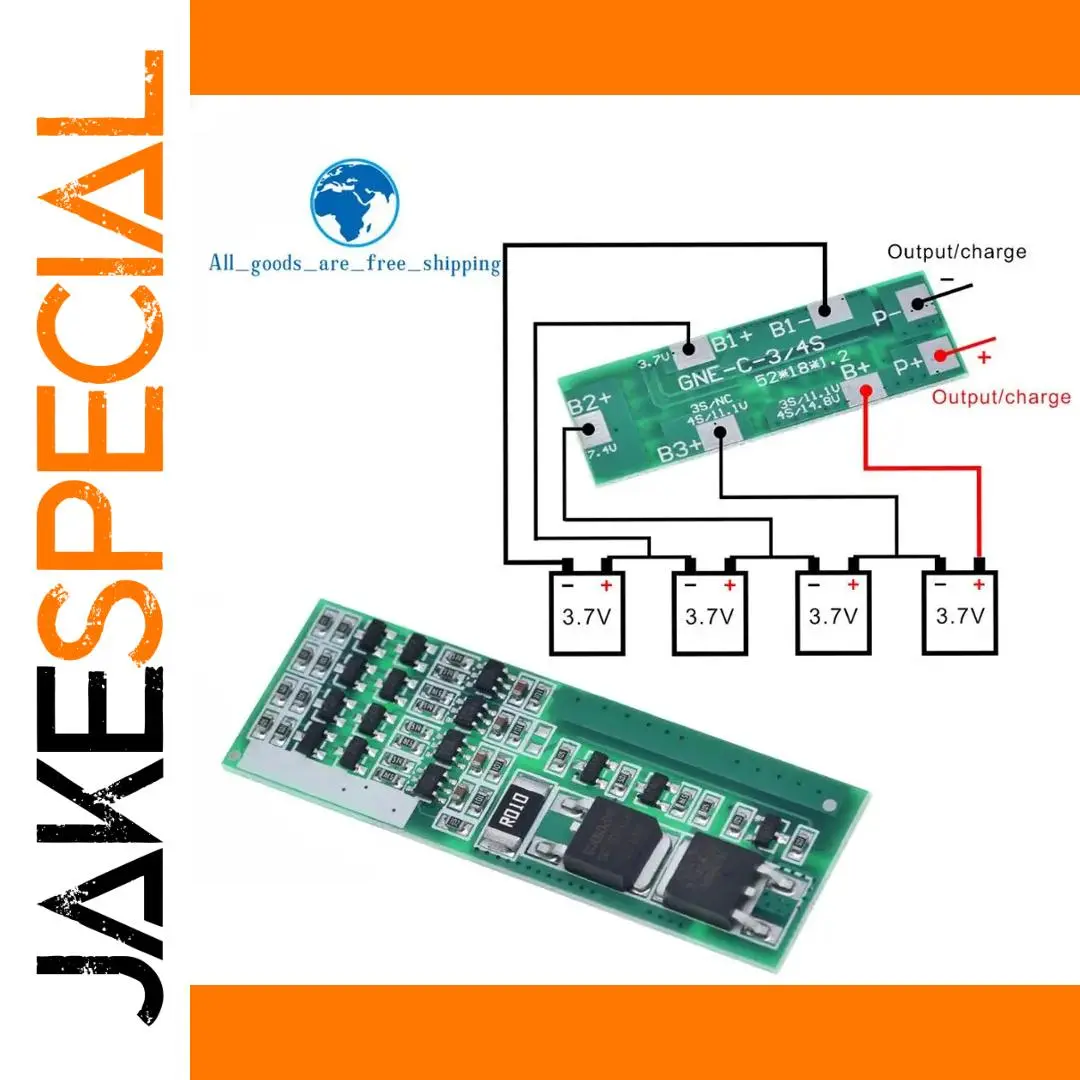

- Soldering process follows a specific order from B- to B+, with a flexible sequence for ports P- and P+, simplifying installation and ensuring correct connections.
- Compact and lightweight at 18mm x 53mm x 3mm, featuring metallic and black accents on the green PCB for a sleek, professional appearance alongside functional precision.
- Compatible with 3.7V Li-ion cells in a 4-series configuration; ideal for DIY battery packs, rechargeable power sources, and custom electronic projects requiring reliable protection.
- Technical specifications include: load power of 12-16V DC, optimized for applications in switches, sensors, and electronic modules, with a focus on safety and durability.
This 4S Li-ion Protection Board is a must-have—order now and secure your battery projects!
Protecting your batteries is crucial for safe, efficient operation. With this protection board, you'll enjoy peace of mind knowing your power source is safeguarded against overcharge, overdischarge, and short circuits. Its precise design and high-quality components ensure reliable performance, making it an essential component for your electronic projects. Whether you're building a portable device, a power bank, or a custom energy system, this protection board will provide the security and stability you need to succeed. Invest in safety and performance today and bring your batteries to their full potential.
| Color | 1PCS, 3PCS |
|---|---|
| Model Number | Model 1 |
| Condition | New |
| Warehouse | HK Warehouse – Hong Kong |
