24-Bit Precision ADC Module for Sensors
43.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake
Experience precise sensor measurement with this ADS1220 ADC module featuring 24-bit resolution, a data rate of up to 2000 SPS, and support for two differential or four single-ended inputs. Equipped with a programmable gain amplifier (up to 128 V/V), internal 2.048 V reference with 5 ppm/°C drift, and a 0.5°C accurate internal temperature sensor, it offers excellent noise rejection at 20 SPS. Powered by 3V-5V, with ultra-low consumption of just 120 μA in duty cycle mode, its compact VQFN-16 or ATSSOP-16 package operates over a wide -40°C to +125°C range. Ideal for thermocouples, RTDs, bridge sensors, and more, it’s built for high-performance, versatile measurements.
In stock
This precision ADC module for your projects

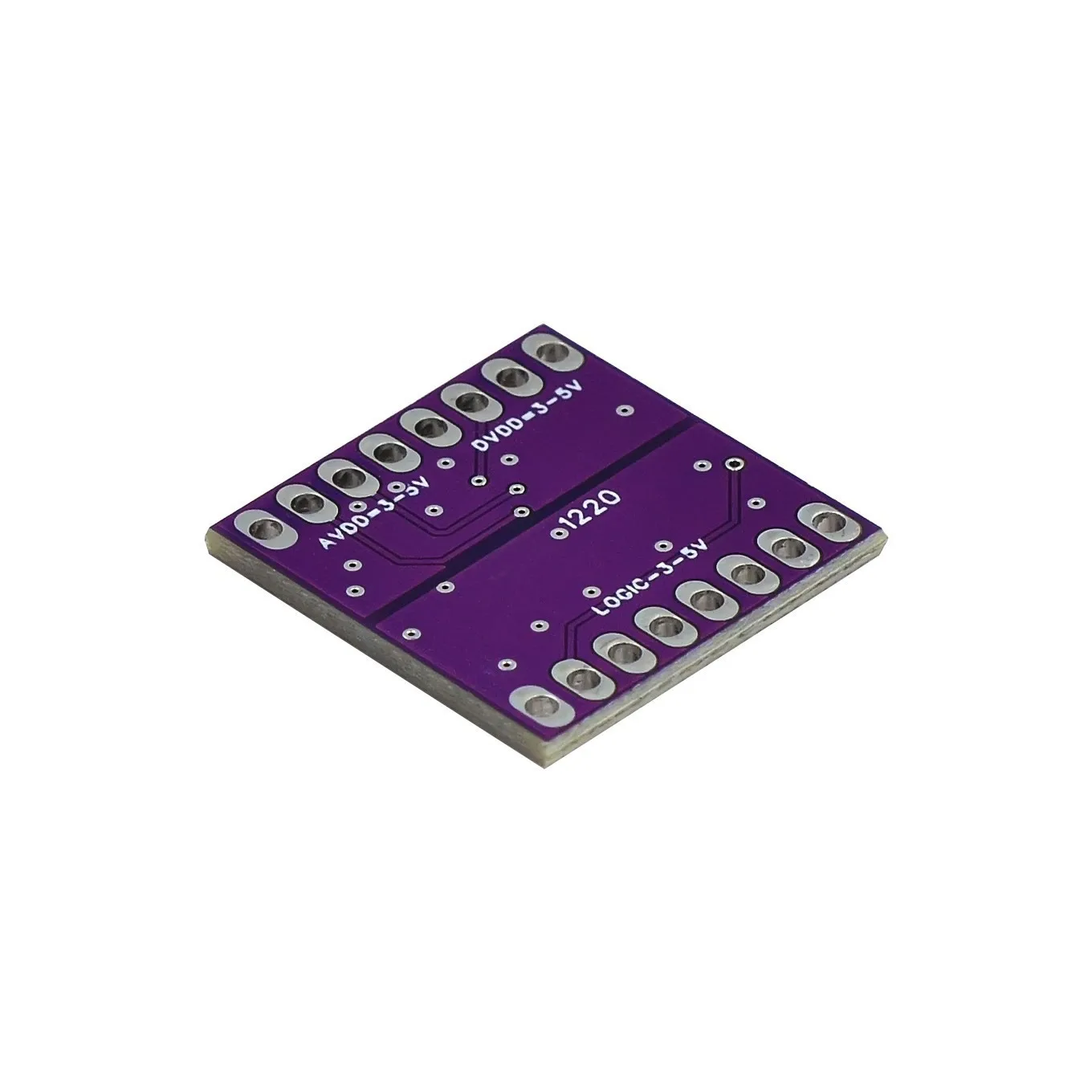

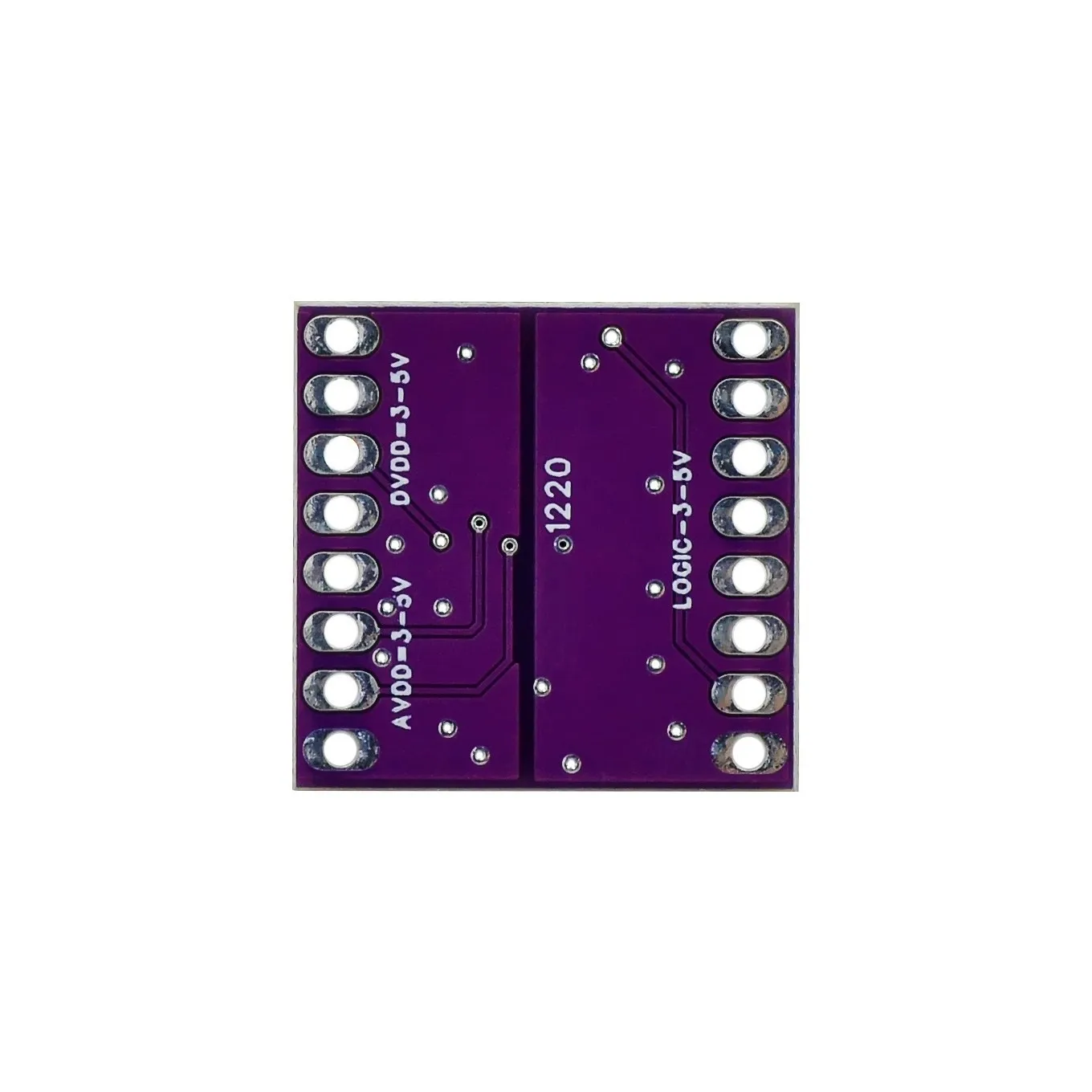

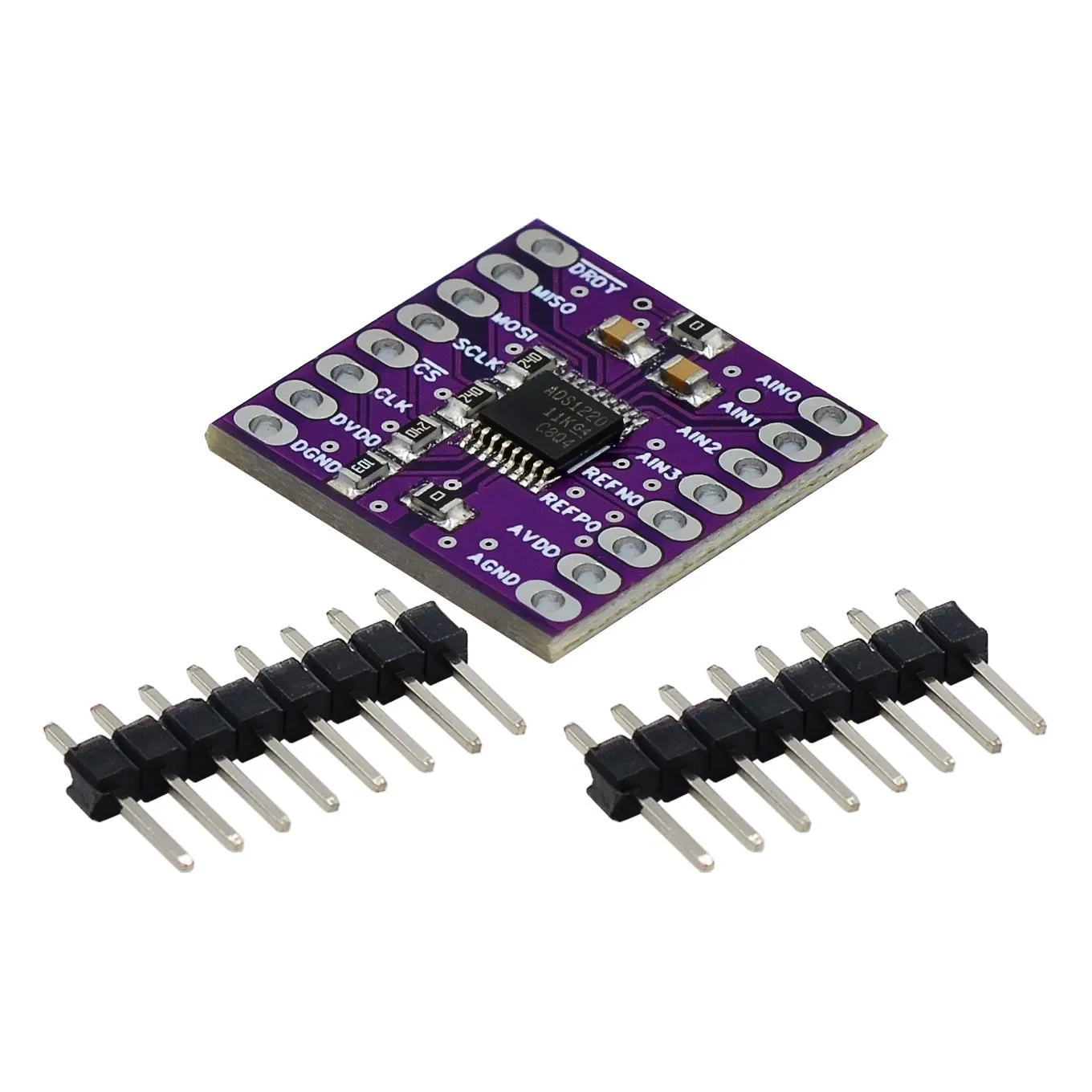

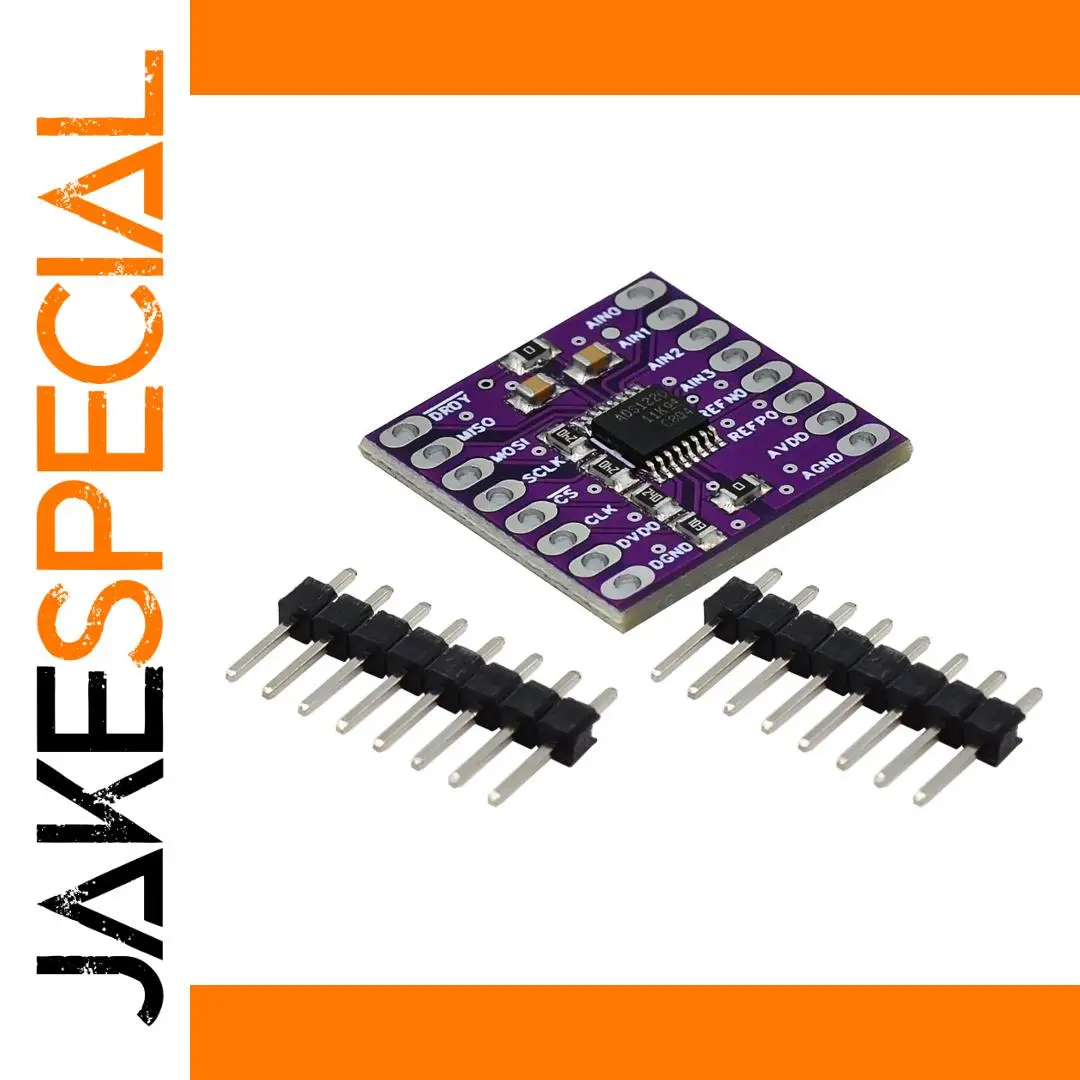

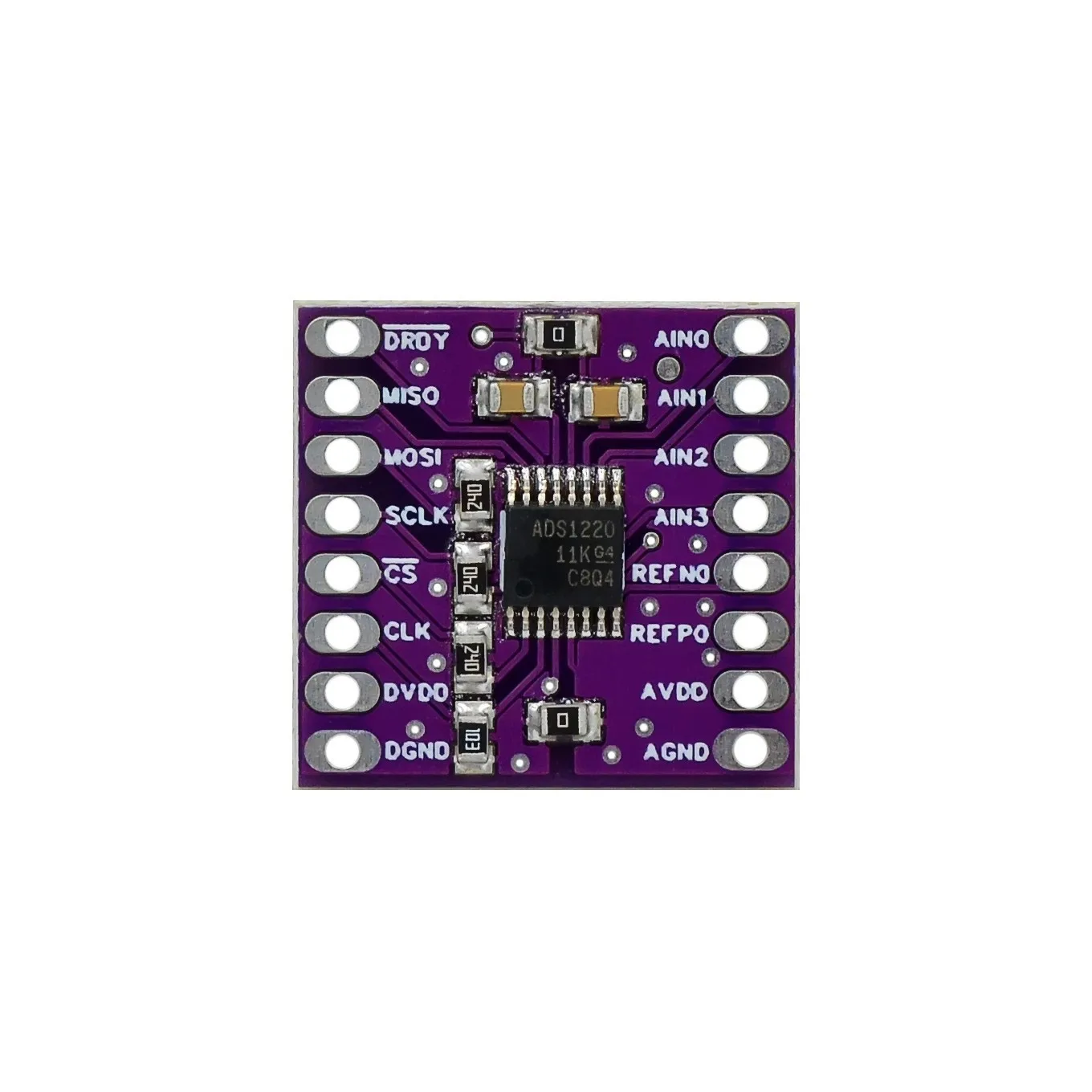

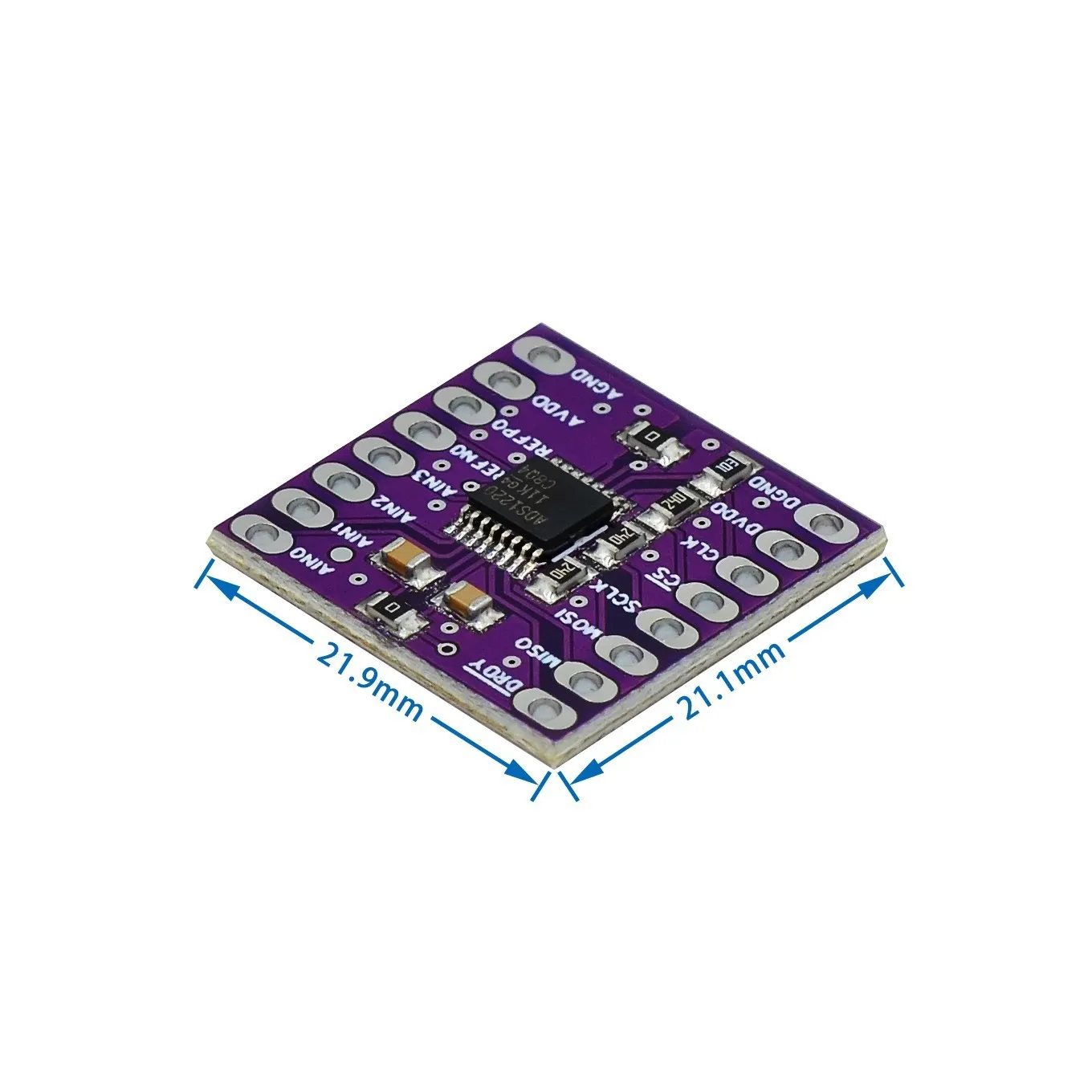

Imagine enhancing your sensor measurements with this high-performance ADC module, specifically designed for precision and reliability. The compact, square-shaped PCB with a sleek matte purple finish offers a modern aesthetic that complements any technical setup. Its well-organized surface features clearly printed labels and a central black surface-mount IC, emphasizing quality craftsmanship. With a neatly soldered array of resistors and capacitors, it ensures accurate signal processing. The included black header pins make integration straightforward, allowing you to connect effortlessly to microcontrollers or measurement systems. Whether measuring resistance temperature detectors, thermocouples, or bridge sensors, this module offers advanced features like a programmable gain amplifier, internal references, and noise rejection capabilities, ensuring you get clean, precise data every time.
Keys features of the precision ADC module
- 24-bit resolution with a maximum sampling rate of 2000 SPS, perfect for high-accuracy sensor data collection. Its low noise and high resolution ensure precise measurements in various applications.
- Supports two differential or four single-ended inputs through a flexible input multiplexer, allowing versatile sensor compatibility including thermocouples, RTDs, and bridge sensors.
- Includes a programmable gain amplifier (PGA) with a gain up to 128 V/V, plus a pass-through mode offering gains up to 4 VnV, suitable for small sensor signals with high precision.
- Powered by 3V to 5V with ultra-low power consumption of just 120 μA in duty cycle mode, making it ideal for battery-powered or portable systems requiring energy efficiency.
- Features an internal 2.048 V reference with 5 ppm/°C drift, a 2% internal oscillator, and a temperature sensor with 0.5°C accuracy, ensuring stable and reliable readings in harsh environments.
- Designed in compact VQFN-16 or ATSSOP-16 packages, operating over a temperature range of -40°C to +125°C, suited for industrial, scientific, and automation applications.
This ADC module will elevate your sensor projects—purchase now
Step into a new level of measurement accuracy and reliability with this advanced ADC module. Whether you're building a temperature monitoring system, test instrument, or automation setup, this device provides the precision and dependability you need. Its versatile inputs, low power consumption, and high-resolution capabilities will seamlessly integrate into your existing systems. Invest today and transform your sensor data into meaningful, actionable insights, ensuring your projects succeed with confidence and precision.
| Condition | New |
|---|---|
| Warehouse | HK Warehouse – Hong Kong |
