24-Bit High-Precision AD7190 ADC Module
66.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake
The AD7190 module is a high-precision 24-bit analog-to-digital converter designed for industrial and measurement applications. Powered by 5V DC with a low 10mA current draw, it features four single-ended and two differential input channels, an external 2.5V reference, and supports PGA modes from 1 to 128 times. Operating at a sampling rate of up to 4.8K samples per second with an 18-bit effective resolution, it offers low noise, digital filtering, and zero delay for accurate signal acquisition. Its compact 50mm x 50mm x 12mm design, with clear connections and robust construction, ensures reliable performance in load cell, motion, and industrial sensing systems.
In stock
This high-precision AD7190 ADC module for your projects

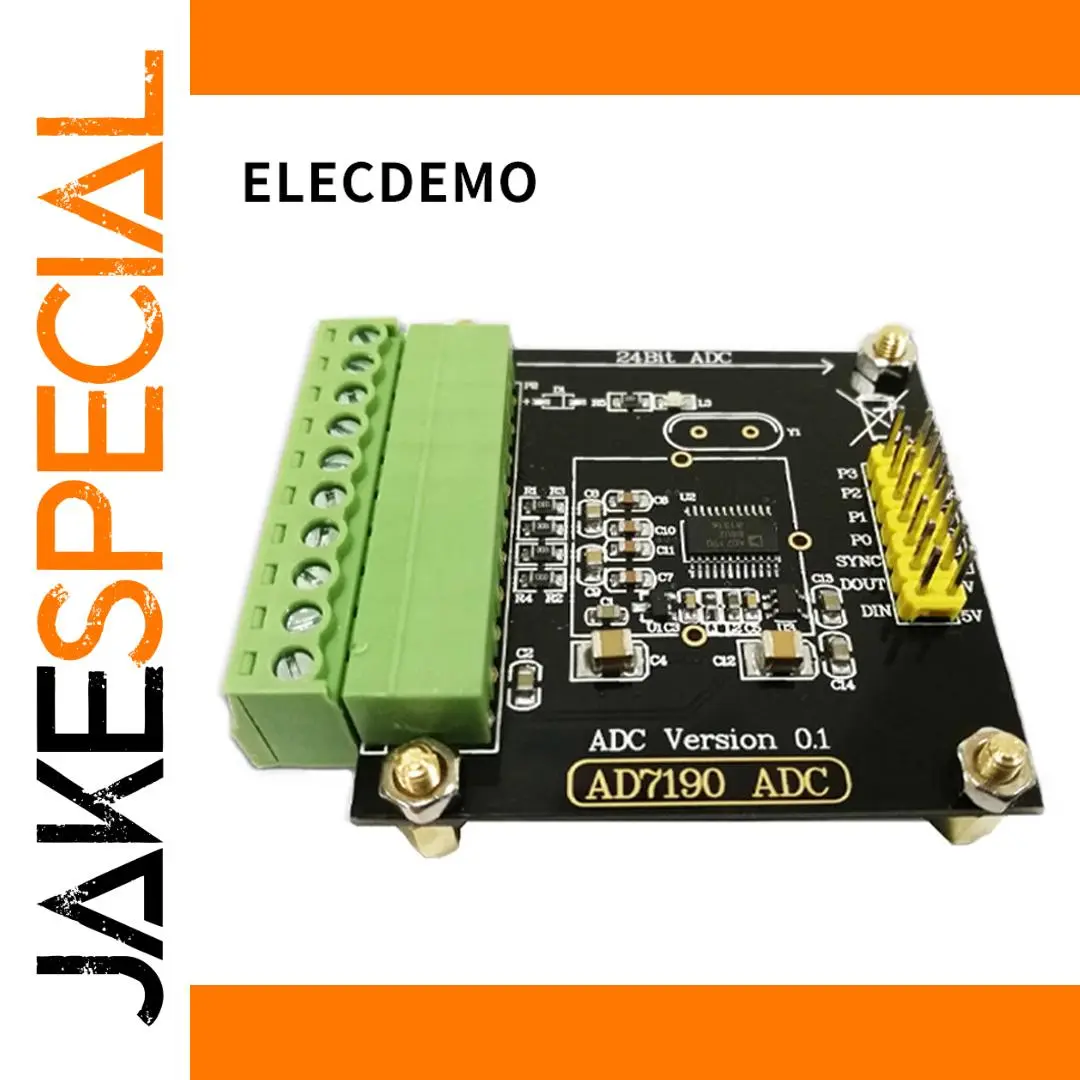

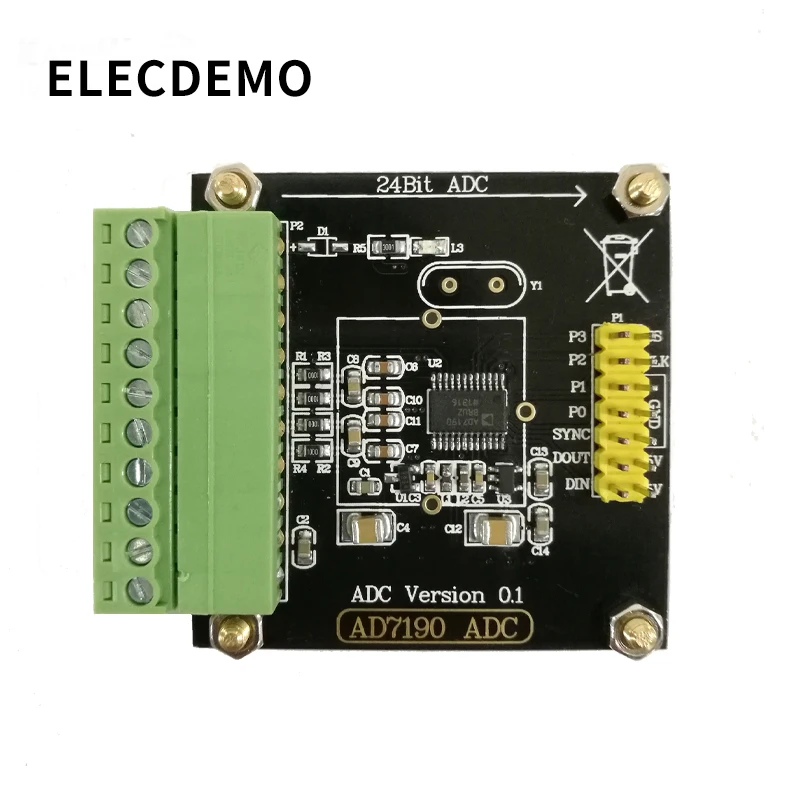

Transform your measurement systems with this sleek, black rectangular AD7190 module, designed for adults who seek reliable, high-precision data acquisition. Its compact 50mm x 50mm x 12mm form factor, combined with a sturdy construction and professional aesthetic, makes it ideal for industrial, load cell, or motion sensing applications. The module features a low-noise, low-disturbance analog front end, capable of converting signals at 24-bit resolution with a 1MΩ input impedance. Its modular design with clearly labeled connection points simplifies integration. Visual accents including vibrant green terminal blocks and bright yellow headers enhance usability. The metallic standoffs and mounting holes give it a robust, industrial look, ensuring it’s ready for demanding environments. This is truly a high-quality, precision ADC module for your advanced measurement needs.
Keys features of the AD7190 ADC module
- Powered by a 5V DC supply with a maximum current of 10mA, delivering high efficiency and stable operation in measurement systems.
- Features a 24-bit resolution ADC with an effective 18 bits, sampling up to 4.8KHz on a single channel, with multi-channel sampling decreasing proportionally.
- Supports four single-ended and two differential input channels with a high 1MΩ impedance, ideal for sensitive load cell and industrial signal acquisition.
- Includes an external 2.5V reference voltage input, compatible with soldered SOT-23, and offers adjustable PGA magnification modes from 1x to 128x for precise signal amplification.
- Communication via SPI serial protocol at 3.3V logic level, with a versatile input voltage range from 0V to 5V for broad compatibility and easy integration.
- Constructed with a resilient, low-noise front end, optional digital filtering, and zero delay characteristics, suited for high-demand environments and precise applications.
This AD7190 module is an essential upgrade. Order now for reliable, high-quality measurement solutions!
Whether you're working on load cell weighing, industrial signal collection, or motion detection, this AD7190 module provides the accuracy and stability you need. Its robust build and precise technical specifications ensure consistent performance across various applications. Imagine integrating this proven device into your project, confident in its ability to deliver clean, reliable data. With straightforward wiring and clear labeling, it becomes a vital part of your toolkit. Let this high-performance ADC module elevate your systems — your accurate measurements are just a step away. Invest in precision today and experience the difference in quality and reliability.
| Condition | New |
|---|---|
| Warehouse | HK Warehouse – Hong Kong |
