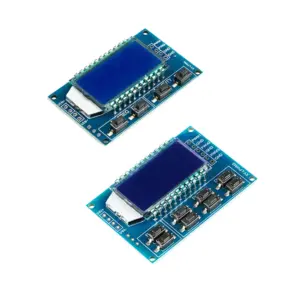

2/3-Channel PWM Signal Generator Module
Price range: 27.99 € through 31.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake
This versatile 2/3-channel PWM signal generator module features an operating voltage of 3.3 to 30V, a frequency range of 1Hz to 150KHz with approximately 2% accuracy, and output currents of 5 to 30mA with amplitude matching the supply voltage. It offers four frequency ranges: 1Hz–999Hz (1Hz resolution), 1.00kHz–9.99kHz (0.01kHz), 10.0kHz–99.9kHz (0.1kHz), and 1kHz–150kHz (1kHz). Duty cycles are adjustable from 0% to 100% in real time using dedicated buttons, with settings retained after power loss. Supports UART communication for easy integration with MCUs. Ideal for controlling motors, generating square waves, PWM dimming, and MCU pulse output.
This this 2/3-channel PWM signal generator module

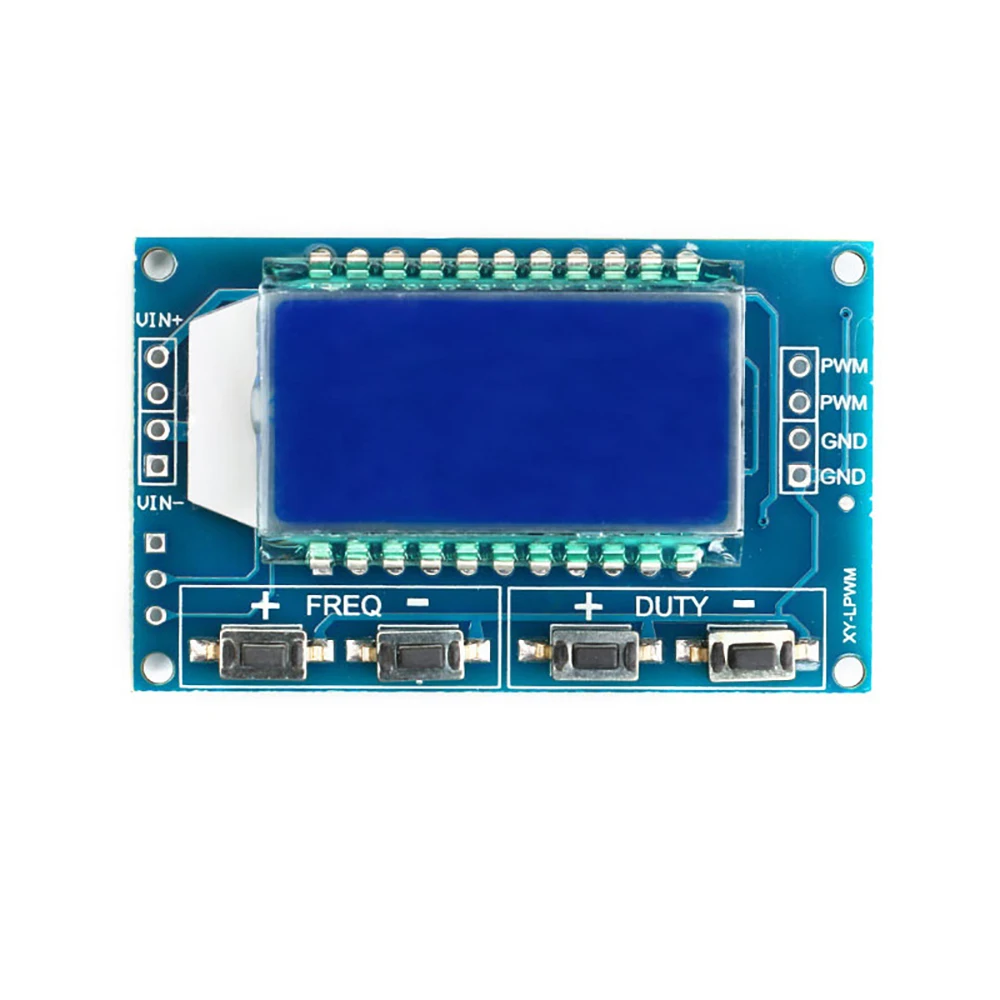

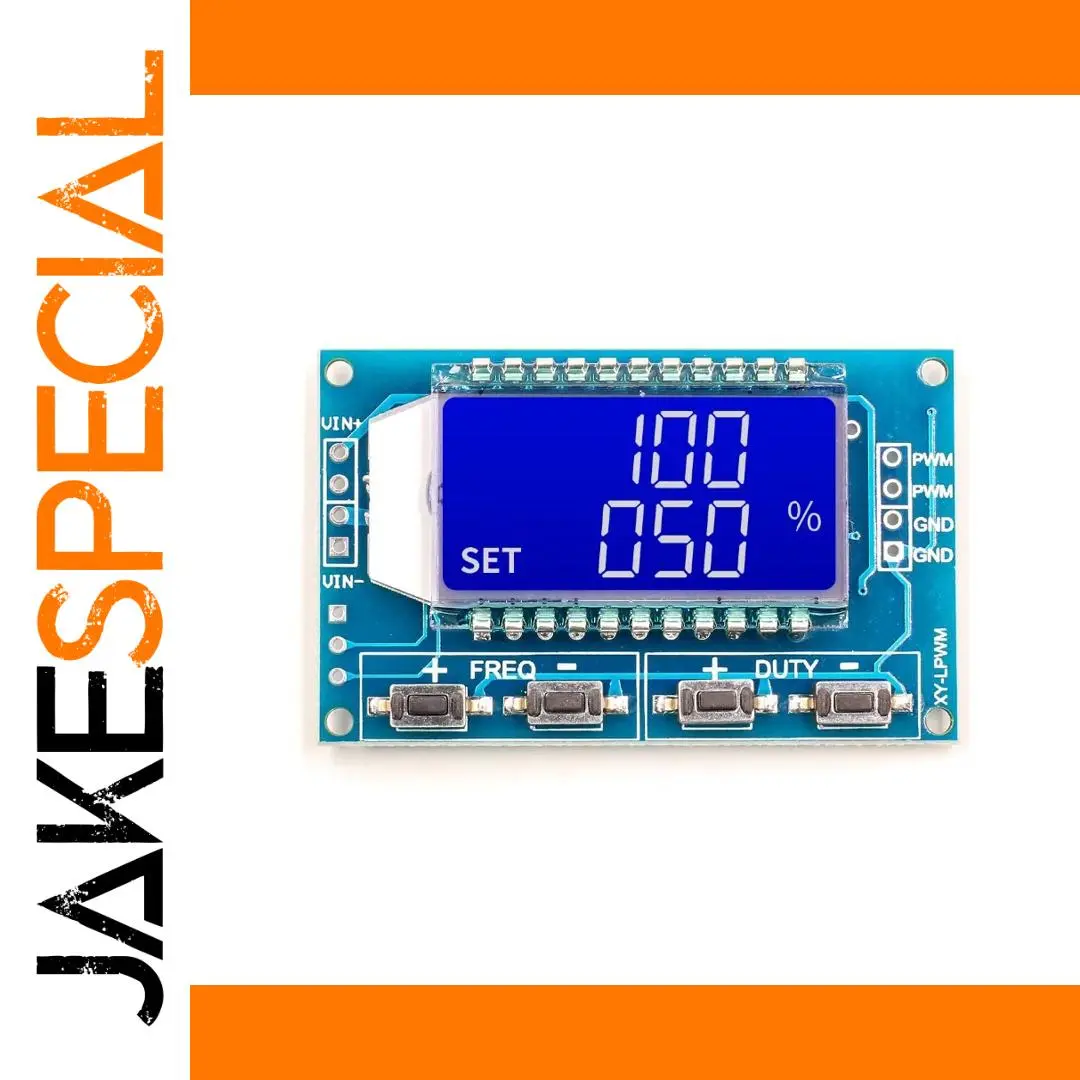

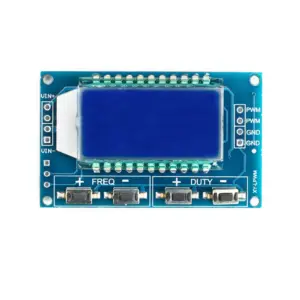

Crafted with precise functionality and a sleek design, this PWM signal generator module features a vivid blue PCB and a large, bright LCD display that clearly shows frequency and duty cycle parameters. The organized layout includes four tactile push buttons and well-placed connection pads, emphasizing ease of use and accessibility. Whether you're developing experimental circuits or controlling motors, this module seamlessly integrates into your projects with its modern aesthetic and high-performance capabilities. Its compact yet robust design ensures durability and precision, making it an essential tool for professionals and enthusiasts alike. Imagine effortlessly adjusting your PWM signals with the intuitive interface while enjoying a clean, professional appearance that complements any technical setup. This module combines style and technical excellence for reliable, real-time control.
Keys features of the this PWM signal generator module

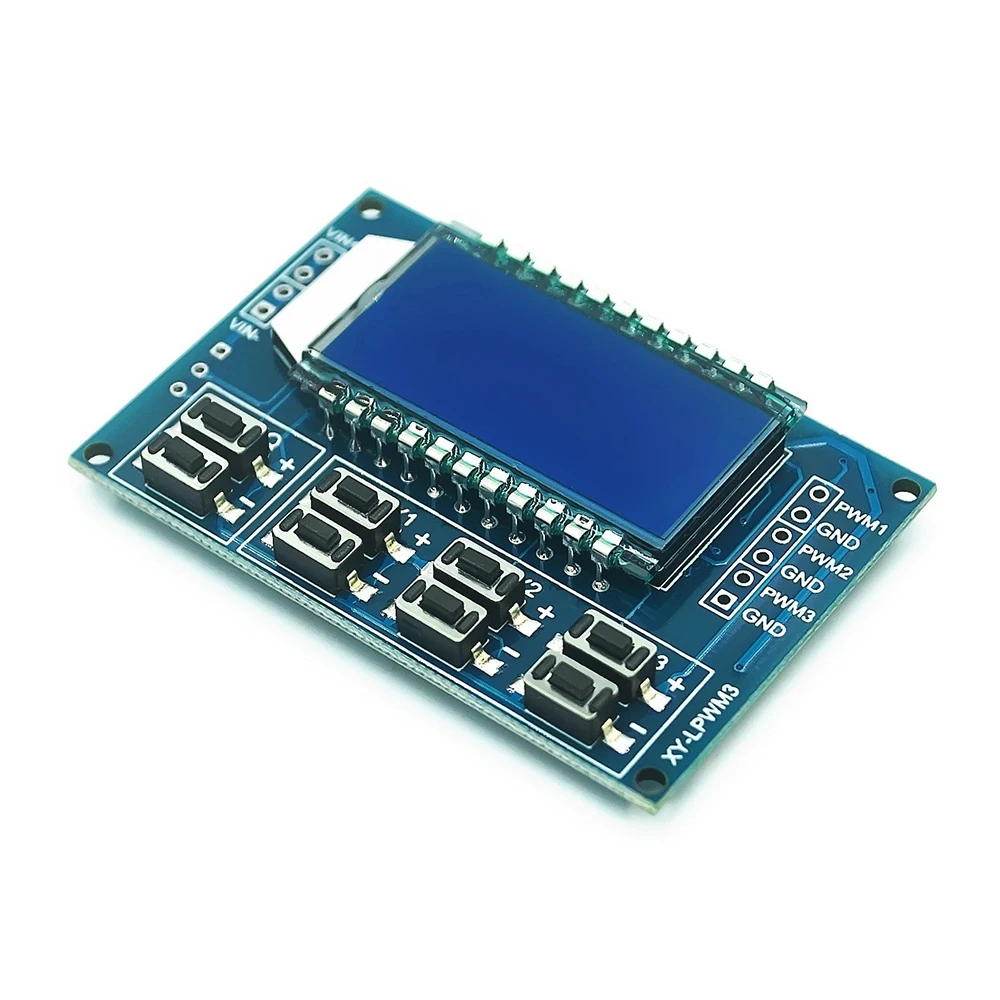

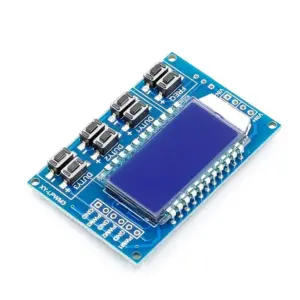

- Supports 2 or 3 PWM outputs with independent, real-time frequency and duty cycle adjustments, suitable for various applications like motor control and circuit testing.
- Features an advanced LCD screen displaying frequency in Hz or KHz and duty cycle with high clarity for quick, accurate adjustments and monitoring.
- Operates on a voltage range of 3.3V to 30V, with a wide frequency range from 1Hz to 150KHz, and provides a current load capacity of 5 to 30mA for versatile usage.
- Provides four automatic frequency ranges with resolution options—1Hz, 0.01kHz, 0.1kHz, and 1kHz—ensuring high precision in signal generation across various scales.
- Includes eight easy-to-use buttons supporting short and long presses, enabling quick adjustments of frequency and duty cycle, which are stored even after power loss for convenience.

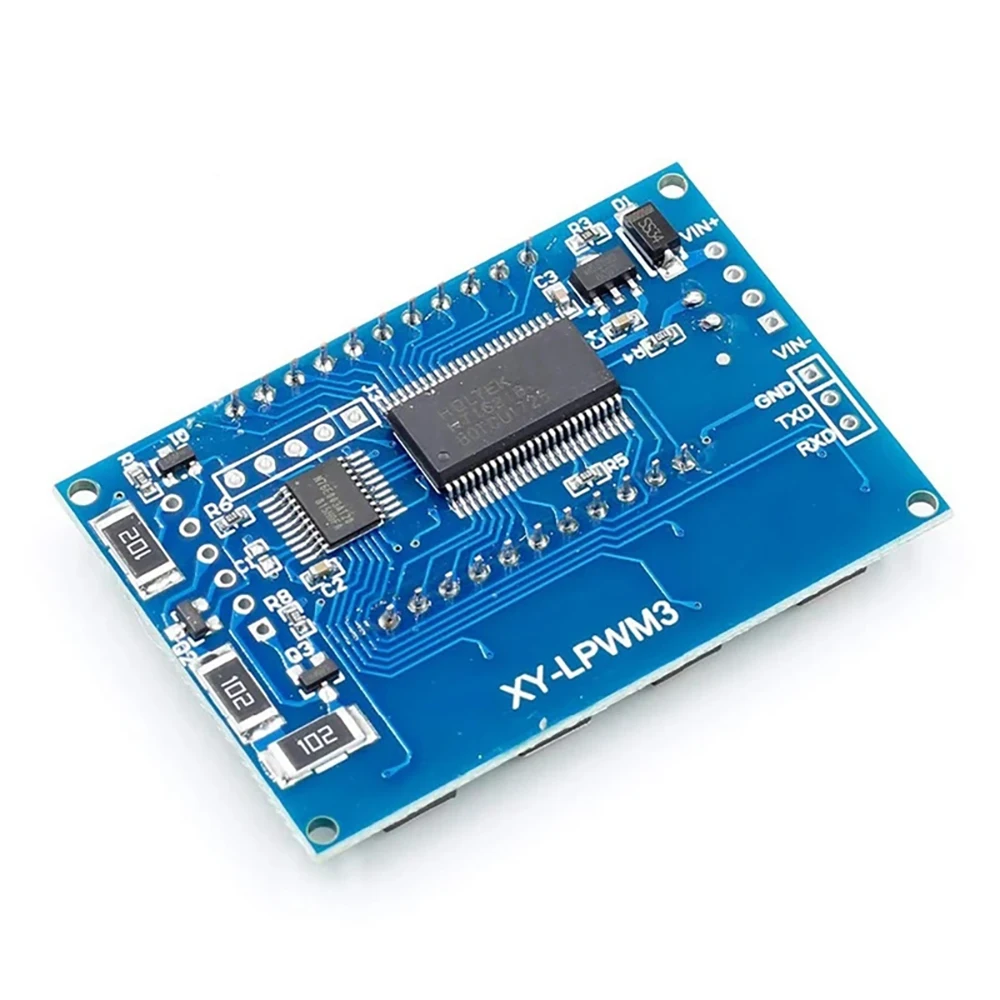

- Supports serial communication at 9600 BPS with 8 data bits, allowing easy integration with microcontrollers for remote control and automation tasks.
Order this PWM module today for precise control and easy integration!
Elevate your projects with this high-quality PWM signal generator. Its clear display, intuitive controls, and reliable performance make it ideal for producing accurate square wave signals, controlling motors, implementing PWM dimming, and generating signals for microcontrollers—all with a professional, modern appearance. Whether you're tinkering in your workshop or developing complex systems, this module offers the precision and durability you need. Its robust design ensures stability across temperatures from -20°C to +70°C, making it suitable for a variety of environments. Make your circuit design smoother and more efficient by choosing this versatile, stylish PWM generator today.
| Color | 3-channel PWM, 2-channel PWM |
|---|---|
| Condition | New |
| Warehouse | HK Warehouse – Hong Kong |
