150W 50Ω RF Termination Resistor for Microwave
25.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake
Experience reliable high-power performance with this 150W RF termination resistor featuring 50 Ohms resistance, ±2% tolerance, operable from DC to 3.0 GHz. Constructed with a durable Aluminum Nitride (AlN) ceramic resistive element mounted on a nickel-plated copper flange, it supports temperatures from -50°C to +150°C and delivers a return loss of 25dB up to 2.0 GHz and 20dB up to 3.0 GHz. Designed for high-frequency, high-power applications like circulator termination and power combiners, this compact component in SOP package ensures precision, durability, and RoHS compliance for your advanced RF systems.
In stock
This high-performance RF termination resistor for you

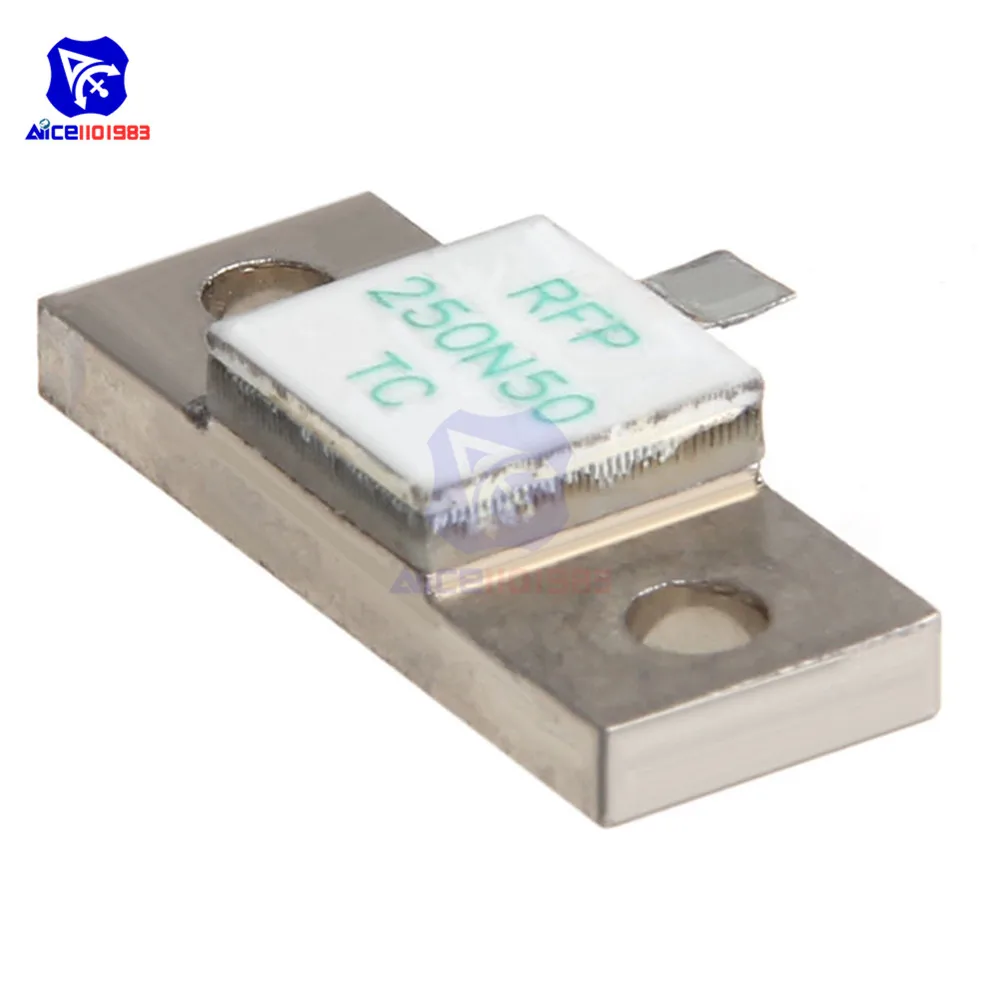

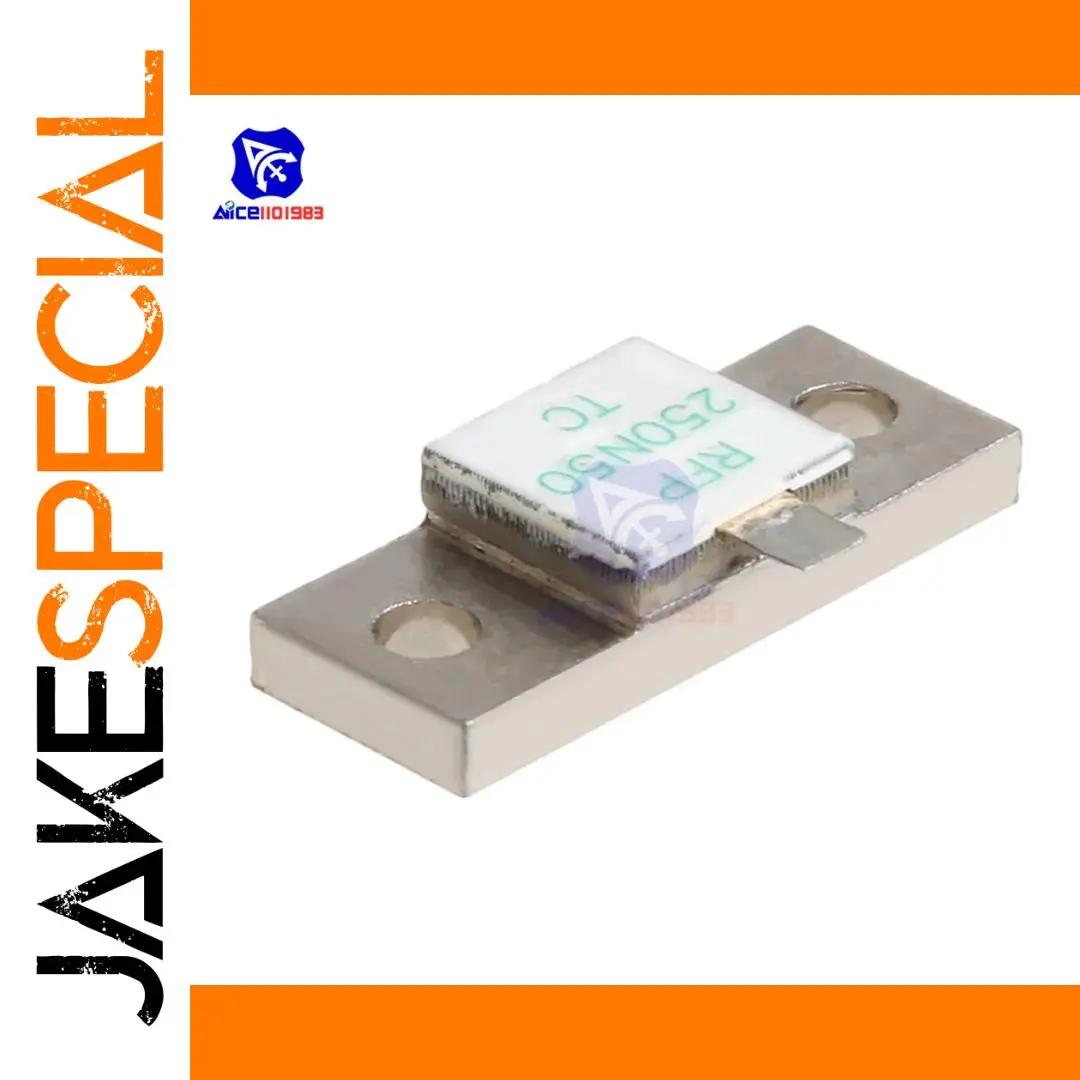

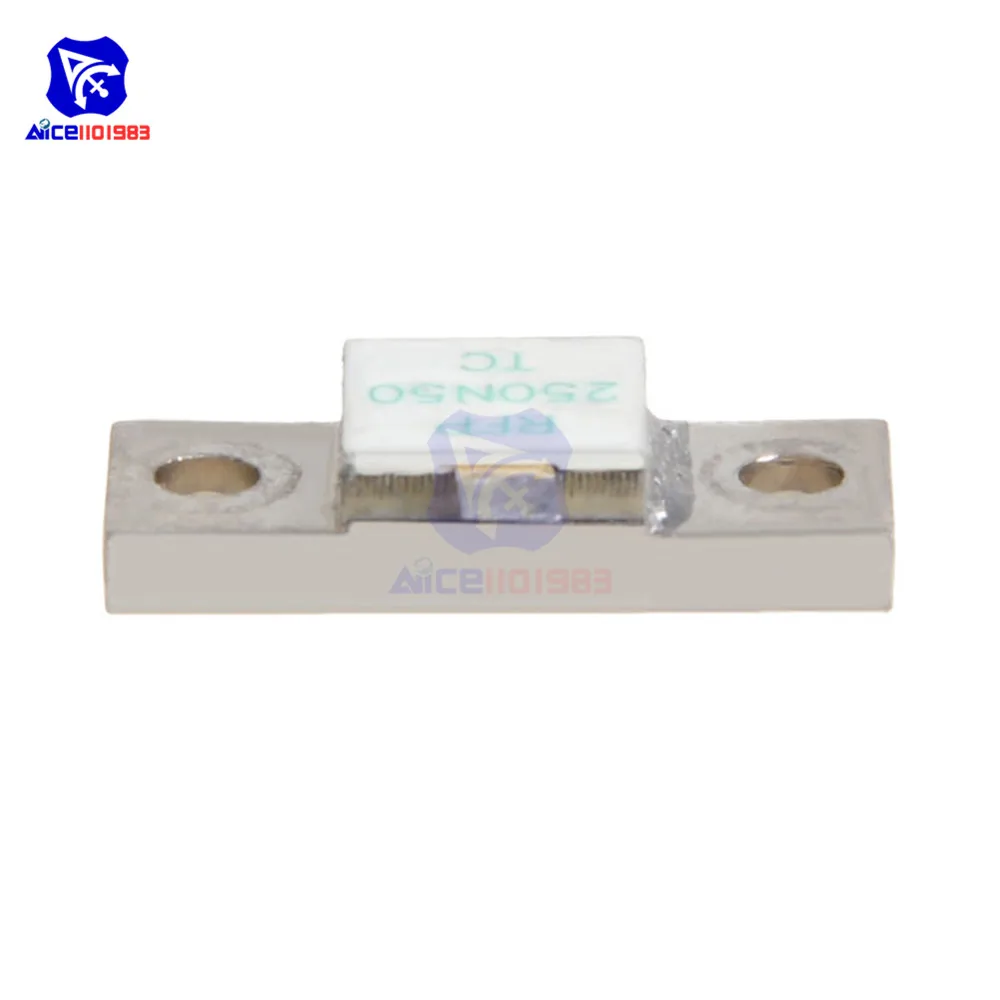

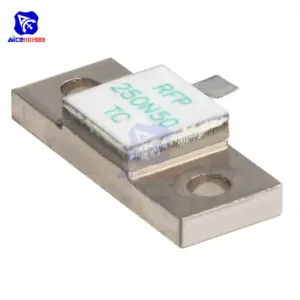

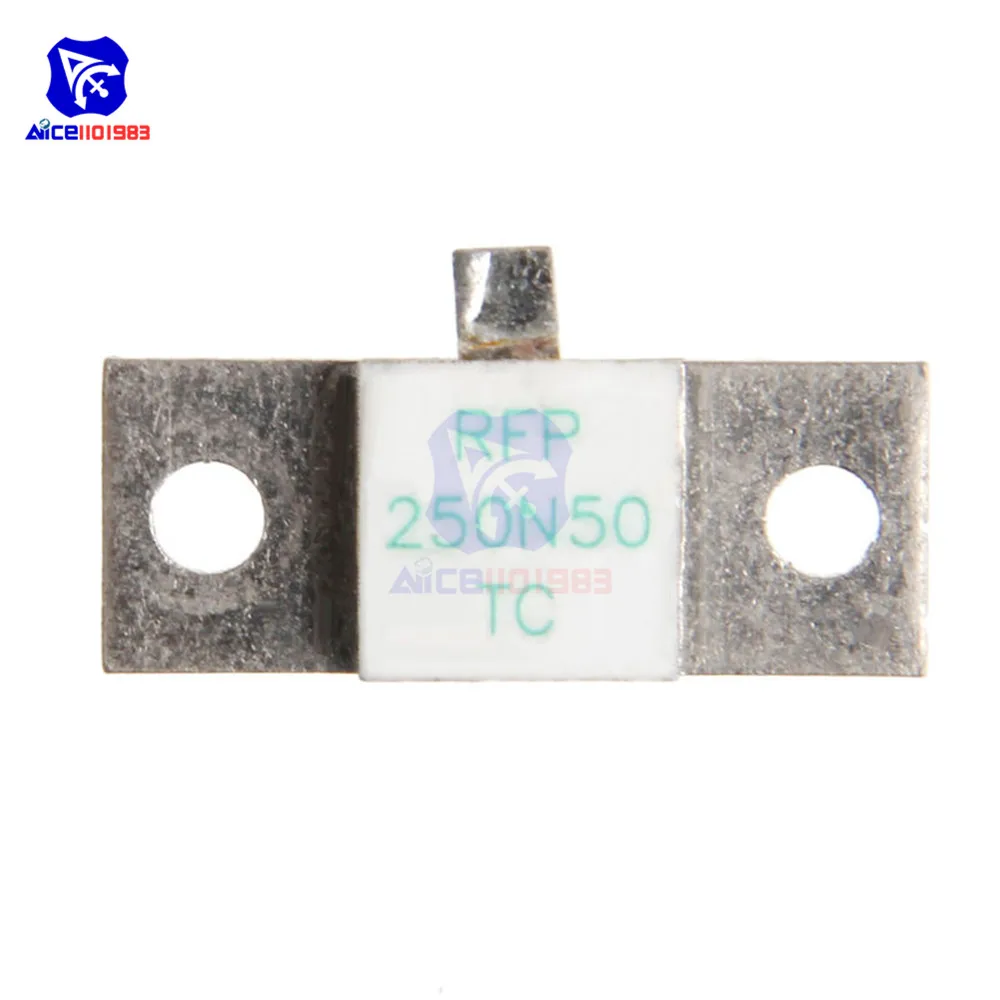

Experience the reliability and precision of this high-power RF termination resistor designed for demanding microwave applications. Crafted with a durable nickel-plated copper flange and a white ceramic chip featuring green print, this component showcases a sleek, industrial look with a compact, rectangular profile. Its advanced aluminum nitride (AlN) ceramic resistive element ensures excellent heat dissipation and stability, capable of handling up to 150W power. The metallic surface reflects quality and durability, while the ceramic component highlights precision engineering. Perfectly suited for high-frequency circulator termination or power combiner applications, this resistor offers a seamless integration into your system. Its minimalist design, combined with technical excellence, guarantees performance in rigorous environments. Visualize a sleek, modern component that combines form and function for your high-power electronics needs.
Keys features of this RF termination resistor
- This 150W RF dummy load features a 50 Ohm resistance with ±2% tolerance, ideal for high-power microwave systems from DC to 3.0 GHz for efficient energy management.

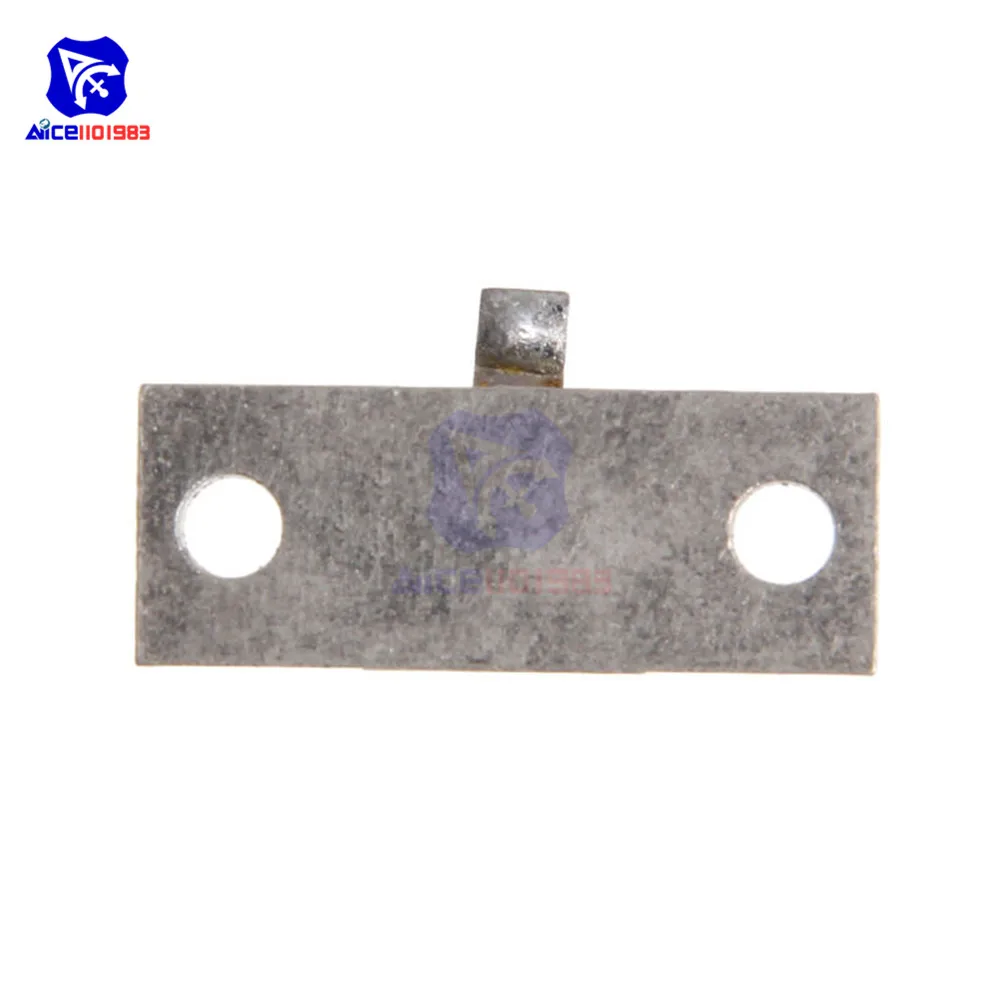

- Constructed on a nickel-plated copper flange, it ensures excellent thermal conductivity and mechanical stability, with mounting holes for secure installation in your device.
- The core resistive element is a thick film aluminum nitride (AlN) ceramic, known for its high thermal conductivity and long-lasting performance under extreme conditions.
- Operational across a temperature range of -50°C to +150°C, with dimensions accurate to ±0.010″, providing consistent performance in harsh industrial environments.
- Achieves a return loss of 25dB at DC-2.0 GHz and 20dB at DC-3.0 GHz, minimizing signal reflection and ensuring high signal integrity.
- This RoHS-compliant component is delivered in a SMD (SOP) package, facilitating easy integration into your high-frequency electronic assemblies.
This RF resistor is your go-to for reliable high-power applications
Invest in this innovative RF termination resistor today and elevate your high-frequency system performance. Its excellent thermal handling, precise specifications, and sleek design make it an essential part of your electronic toolkit. Whether you're terminating circulators, managing power in microwave circuits, or working on advanced communication systems, this component offers peace of mind and robust performance. Place your order now to experience the perfect blend of technical excellence and dependability, ensuring your projects run smoothly and efficiently.
