10MHz OCXO Frequency Crystal Oscillator Module
81.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake

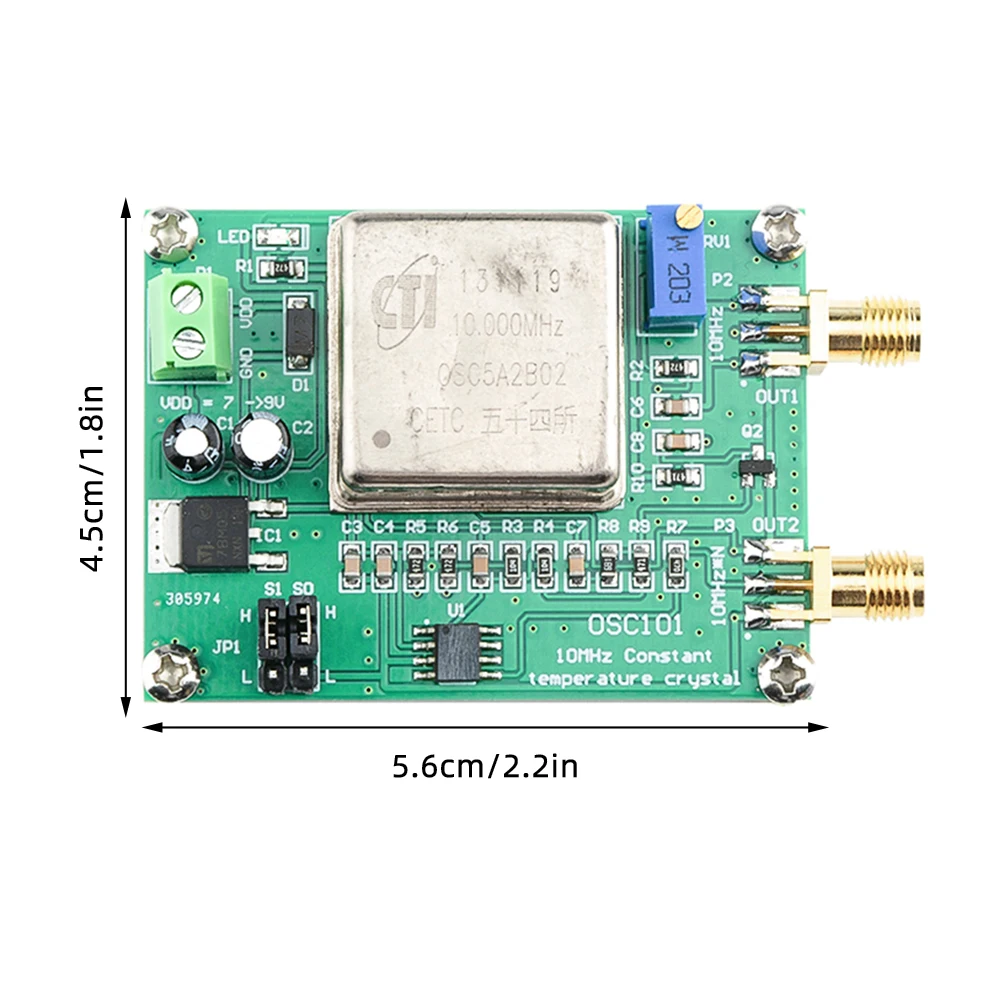

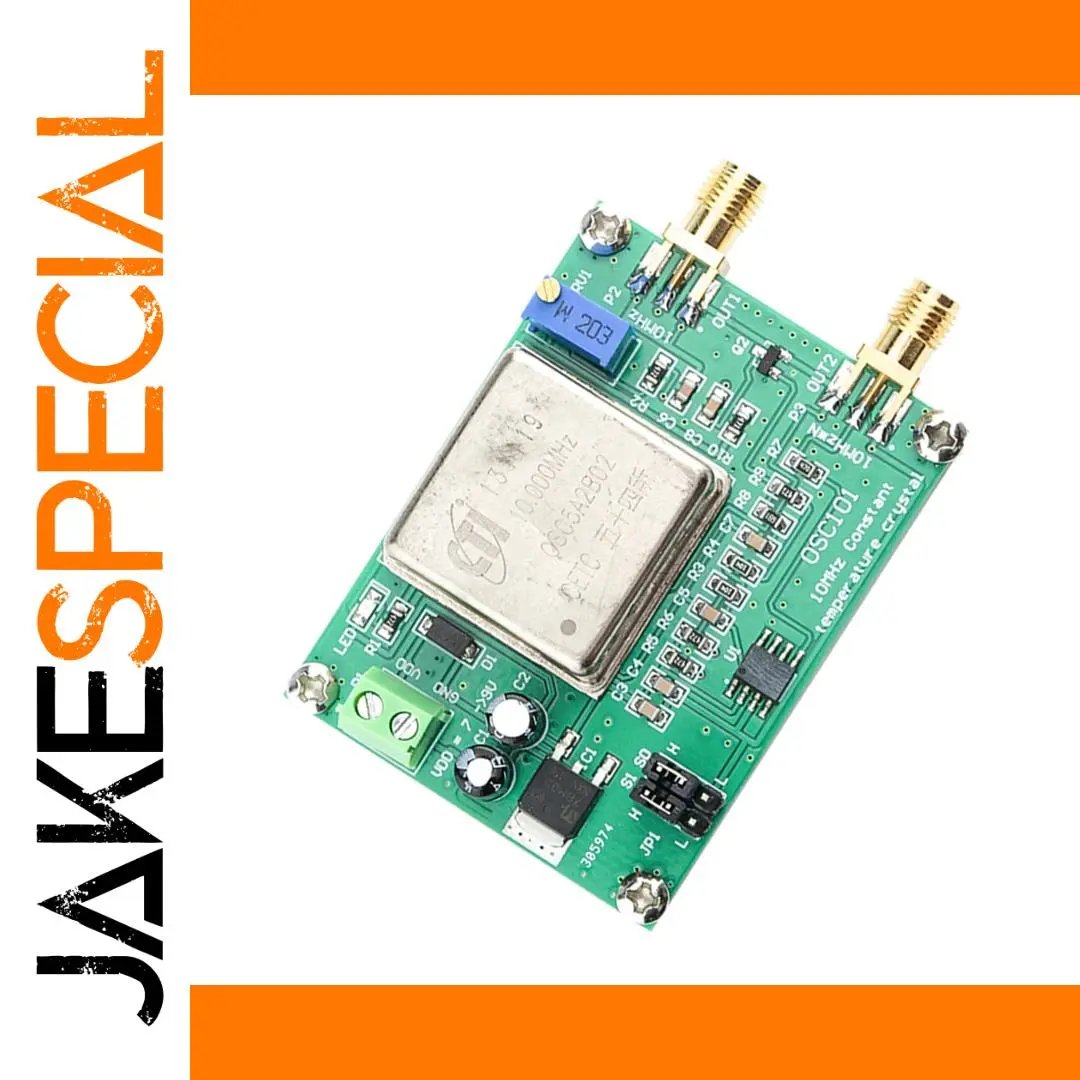

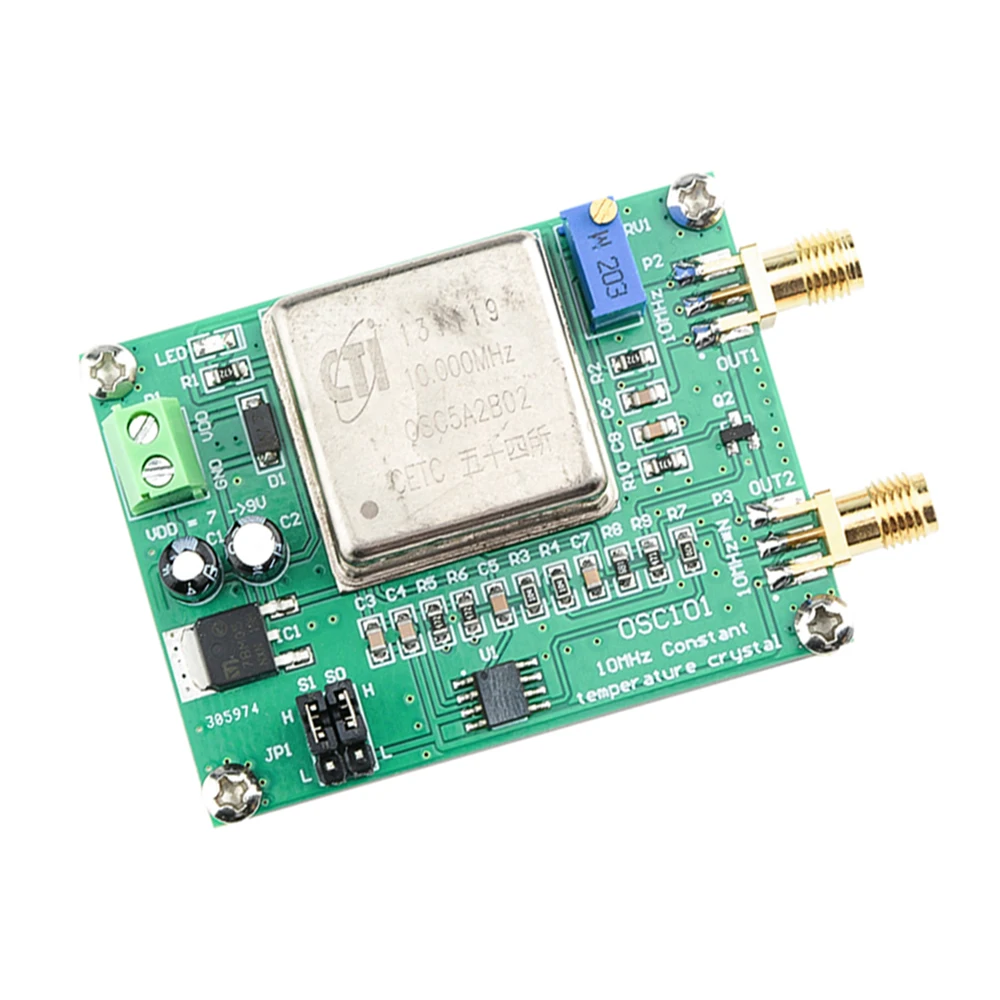

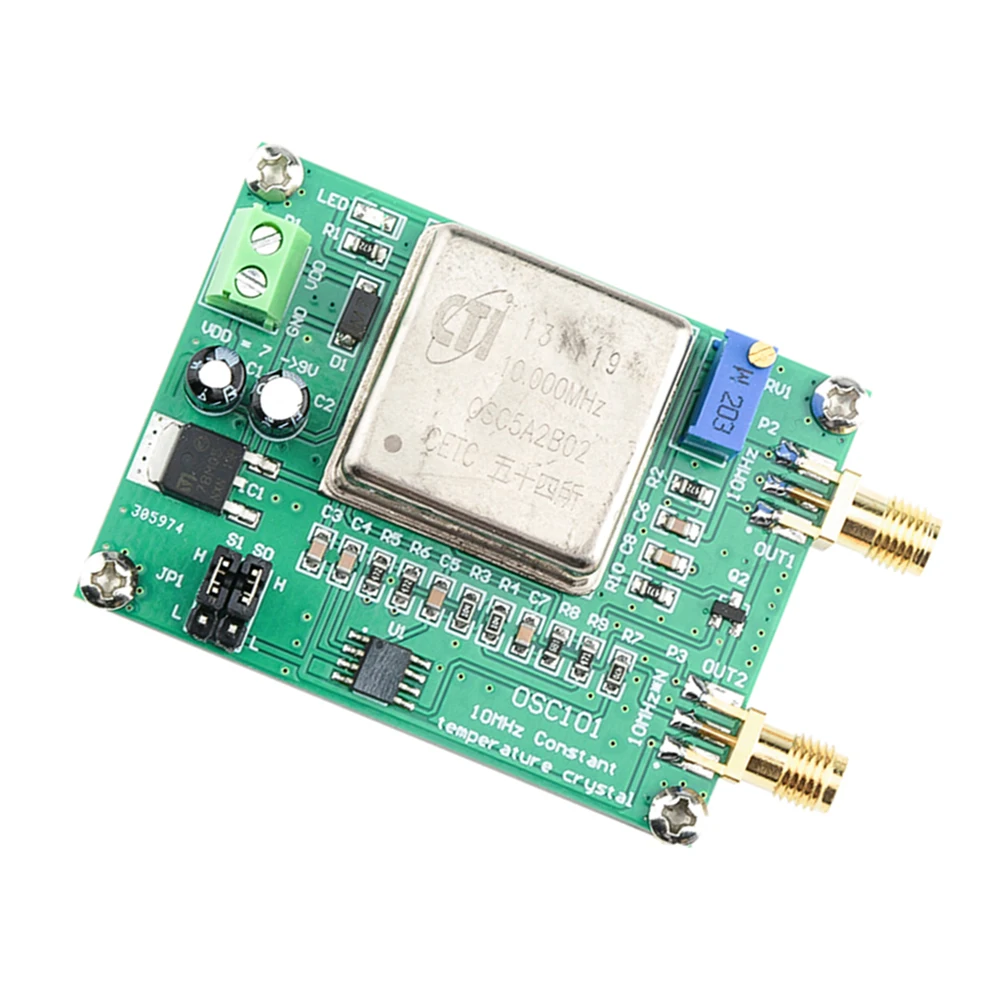

This OCXO 10MHz frequency crystal oscillator module features high precision with a ±200ppb output accuracy and ±2.0ppm deviation correction via a potentiometer. It offers two SMA signal outputs: a standard 10MHz at 3Vpp and a multiplied 10MHz with selectable factors from 2X to 8X, controlled by jumper configurations. Powered with 7-9V, it includes precision adjustment options with two black trimmer components and control pin headers S1 and S0 for flexible frequency multiplication, making it an ideal signal calibration and generation module for high-accuracy applications. Its vibrant green PCB, silver crystal, gold-plated SMA connectors, and compact design combine to deliver professional, reliable performance.
In stock
This this OCXO 10MHz frequency crystal oscillator
Experience precise frequency calibration with this high-performance OCXO 10MHz oscillator module. Designed for professionals and enthusiasts alike, this device offers excellent stability, featuring a ±200ppb frequency accuracy and a correction capability of ±2.0ppm via an intuitive potentiometer. Its vibrant green PCB highlights a sleek, modern aesthetic while housing critical components such as a metallic silver rectangular crystal oscillator, gold-plated SMA connectors for signal output, and black calibration trimmers. The dual-output setup provides a standard 10MHz signal at 3Vpp and a selectable multiplied frequency output up to 8X, ideal for your calibration and timing needs. Easy jumper configuration allows seamless switching between multiplication factors. Whether used in communication systems, test equipment, or signal processing, this OCXO module is built for precision and reliability.
Keys features of the this OCXO 10MHz frequency crystal oscillator
- High-accuracy 10MHz output with a ±200ppb tolerance ensures stable and precise frequency generation for demanding applications.
- Includes a correction potentiometer (RV1) that allows fine-tuning of the frequency deviation within ±2.0ppm, ensuring optimal calibration over temperature changes.

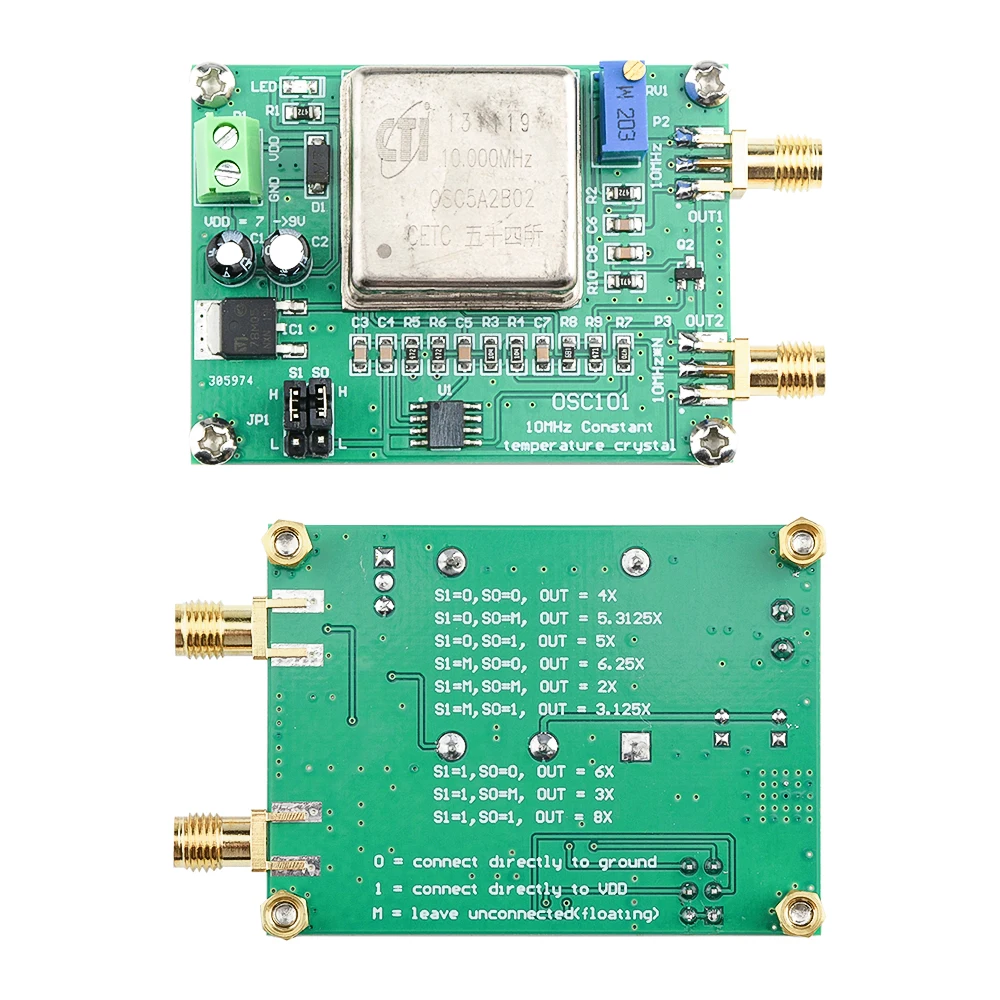

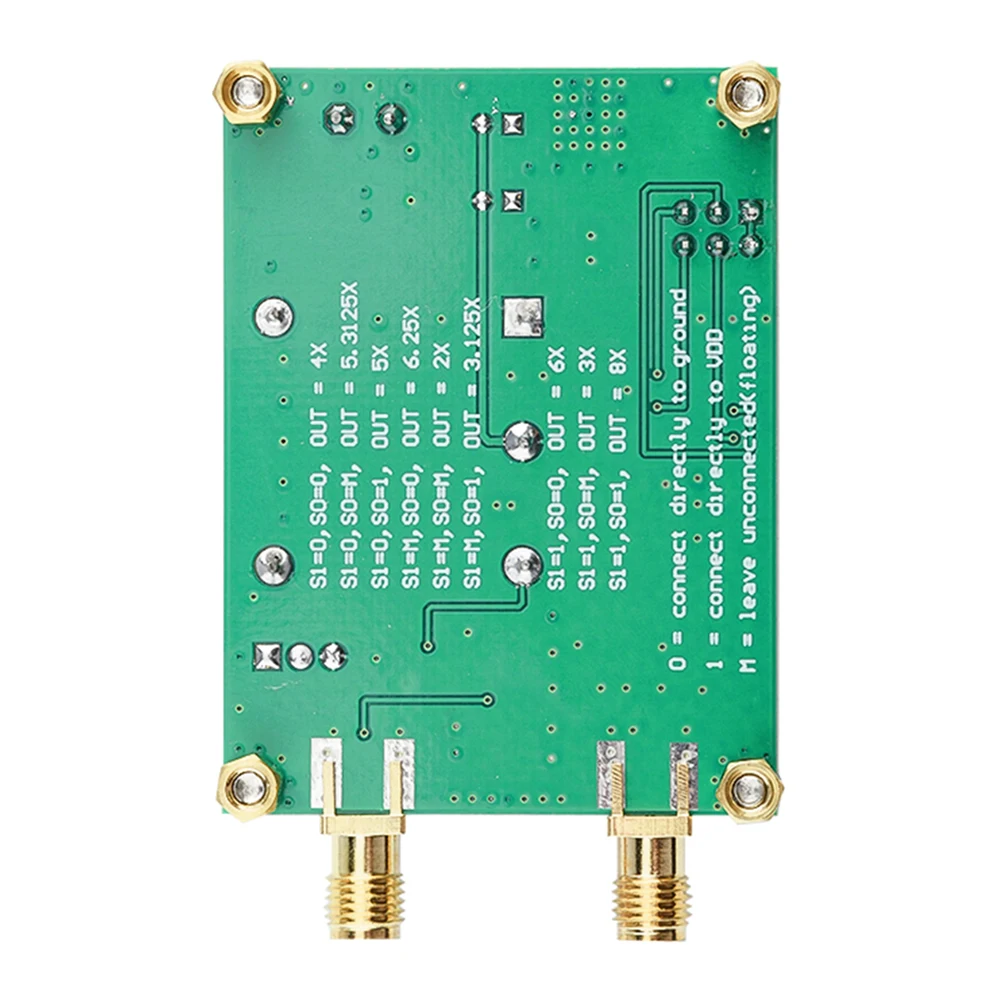

- Dual signal outputs: a standard 10MHz at 3Vpp amplitude, and a multiplied 10MHz signal with selectable factors (2X to 8X) controlled by jumper settings.
- Gold-plated SMA connectors at the top provide secure, corrosion-resistant connections for signal transmission.
- Powered through a 7V to 9V input terminal, designed with small surface-mount resistors, capacitors, and pin headers (S1, S0) for easy configuration of multiplication ratios.
- Robust green PCB featuring a metallic crystal oscillator, calibration components, and control headers ensuring durability and high performance.
Get this reliable this OCXO 10MHz oscillator now and improve your calibration setup!
Enhance your projects with this precision OCXO 10MHz frequency crystal oscillator. Designed with meticulous attention to detail, it provides unmatched stability and flexibility for signal calibration and testing. Once installed, you'll immediately notice the ease of adjusting the frequency deviation and switching output modes using the jumper settings. Its compact yet powerful design makes it an ideal addition to your frequency synthesizers, communication modules, or lab equipment. Trust in its technical excellence and enjoy consistent performance, precision, and reliability for your most demanding timing and signal generation tasks. Invest today to elevate your technical setup!
