Enhance Your Projects with the High-Speed TFT/SD Expansion Shield for DUE

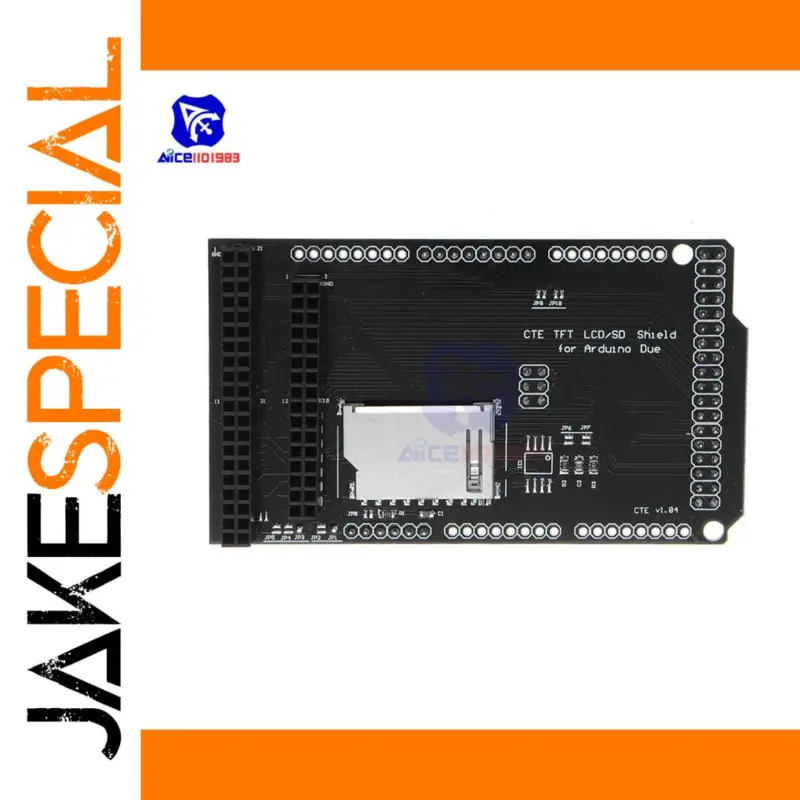

The High-Speed TFT/SD Expansion Shield for DUE
If you're developing projects with the Arduino DUE and need a reliable way to enhance your display and storage capabilities, the High-Speed TFT/SD Expansion Shield for DUE is an excellent choice. This shield delivers seamless high-speed interaction by supporting a wide range of TFT LCD modules, from 2.8″ to 7.0″ with resolutions reaching up to 800×480. Its sleek matte black PCB not only looks modern but ensures practical organization for easy integration. Designed with precision routing for LCD data and control pins, the shield optimizes data transfer speeds to achieve three cycles per write strobe, providing rapid and smooth visual responses. Whether you're aiming for detailed displays or expanded data storage, this shield covers your needs.
The features of the high-speed TFT/SD expansion shield for DUE
Supporting various TFT LCD modules and resolutions, the shield is compatible with both font IC and IPS technology, ensuring vivid and high-quality visuals. You can benefit from its carefully routed pins, including LCD data pins (PC1–PC8, PC12–PC19) and control pins (PD0–PD3), which maximize data transfer speeds. The onboard SD card slot, equipped with adjustable chip select pins, enables flexible storage options, while the SPI flash footprint offers further upgrade opportunities. The shield supports both 3.3V and 5V power options, configurable via solder jumpers, and allows custom backlight control via 3.3V, 5V, or PWM. Its compatibility with 40-pin and 32-pin LCD modules used in DUE and STM32 boards makes setup straightforward, often eliminating the need for flying wires. Designed with organized layout labels, this shield ensures a clean, professional look and high performance.
The shield that elevates your projects to the next level
Invest in the High-Speed TFT/SD Expansion Shield for DUE to unlock its full potential for your development needs. Its plug-and-play design simplifies installation, making it perfect for quick prototyping or complex display applications. Whether you're creating detailed visual interfaces or expanding your project’s data management capabilities, this shield offers robustness and speed that you can rely on. Enhance your setup today and experience the difference that high-quality hardware can make in delivering reliable, high-performance results.
